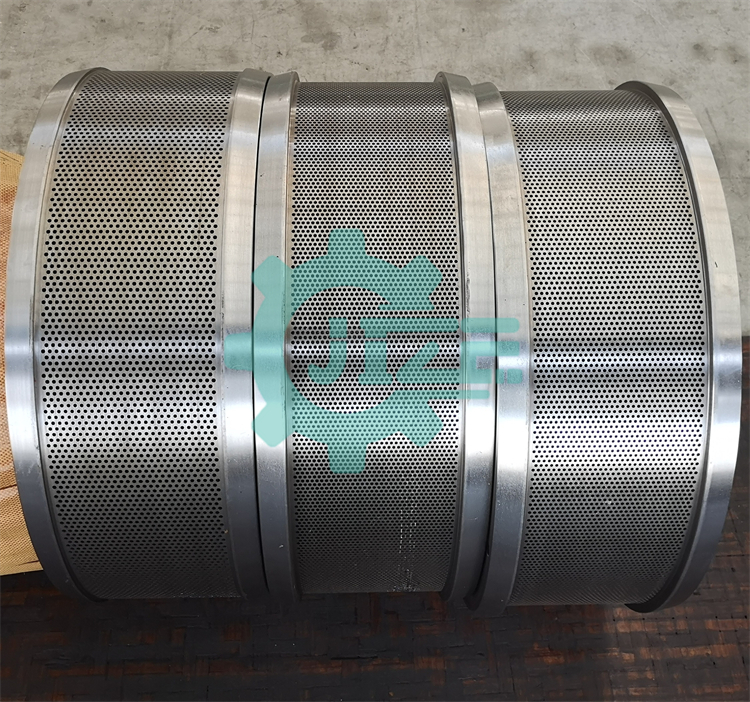

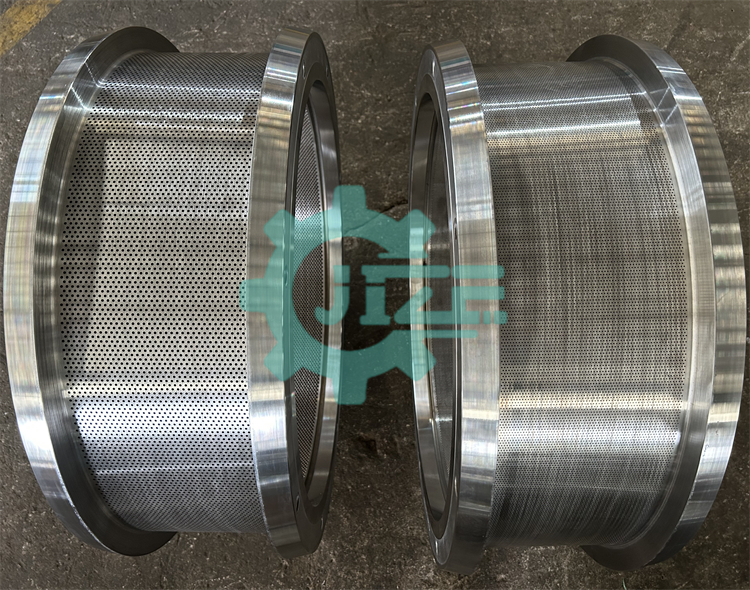

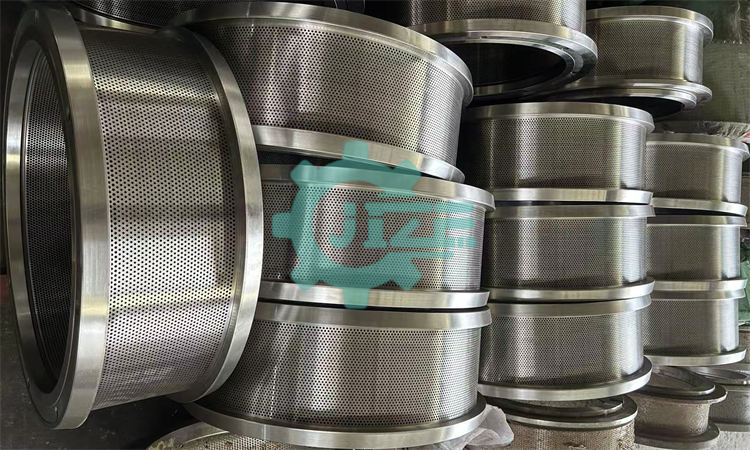

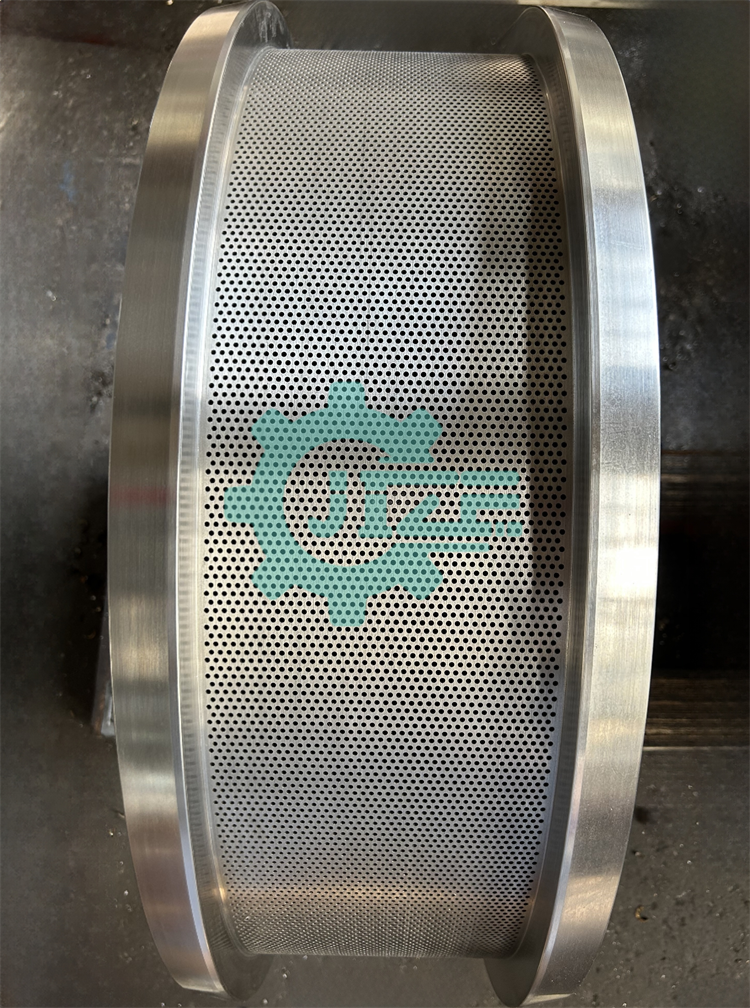

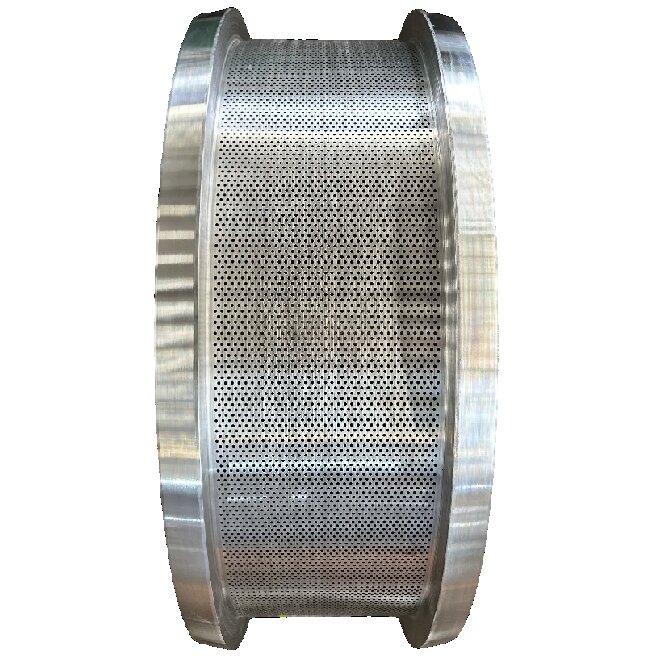

MUZL(FAMSUN MUYANG) Ring Die
Name: FAMSUN350 ring die, FAMSUN420 pellet die, FAMSUN550 pellet machine ring die, FAMSUN600 feed pellet die, FAMSUN1210 feed pellet mill die, Muyang350 feed pellet machine die, Muyang420 pellet machine matrix, Muyang550 pellet matrix, Muyang600 feed pellet mill matrix, Muyang1210 feed pellet matrix, Muyang pellet mill ring die, FAMSUN pellet machine ring die & FAMSUN pellet mill roller.
Model: Raw material:
Ring die: alloy steel 20CrMnTi, stainless steel X46Cr13.
Roller: alloy steel 40Cr or 20CrMnTi (Chinese standard), 20MnCr5 (Germany standard), 100Cr6 (bearing steel).
Hole diamter: φ1mm-φ14mm.
Compression ratio: 1:2-1:28.
Processing machines:
20 sets auto gun-drilling machines(3 sets deepth holes drilling machines, can drill max 140mm thickness holes, can drill min 1.0mm diameter holes).
6 sets auto counter-sinking machines.
6 sets auto CNC lathing machines.
2 sets vacuum heat treatment machines.
Delivery time: mostly 10-35 days.
Packing way: wooden box.
Accept customized!!!
Model:
MUZL600, FANSUM 600, MUYANG 600 feed pelletizer ring die:
MUZL 1200, FAMSUN 1200, MUYANG 1200 feed machine die:
MUZL 1610C, FAMSUN 1610C, MUYANG 1610C feed pellet machine ring die:
|
