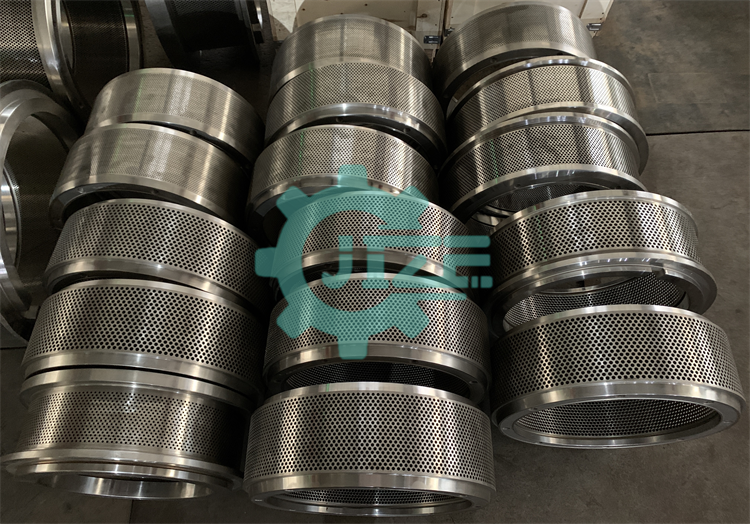

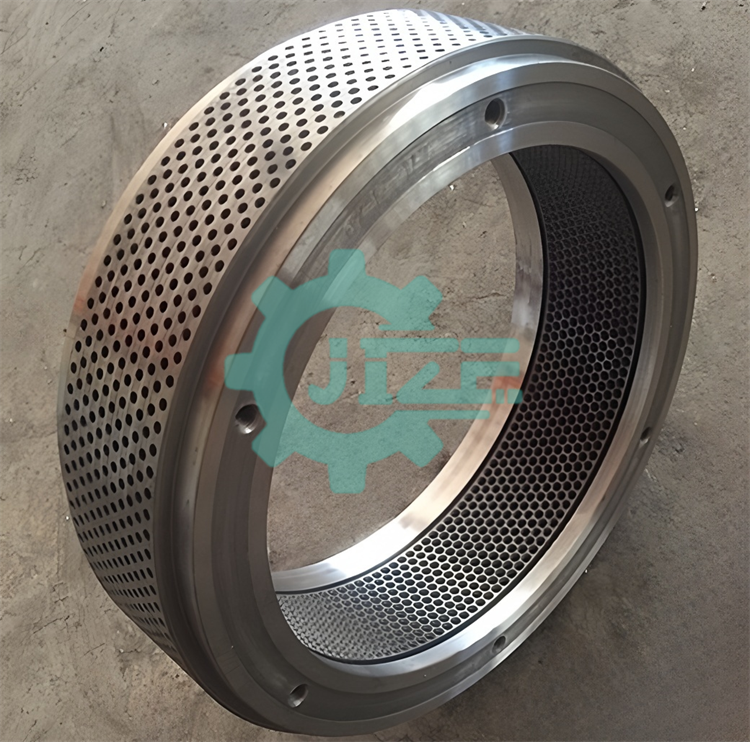

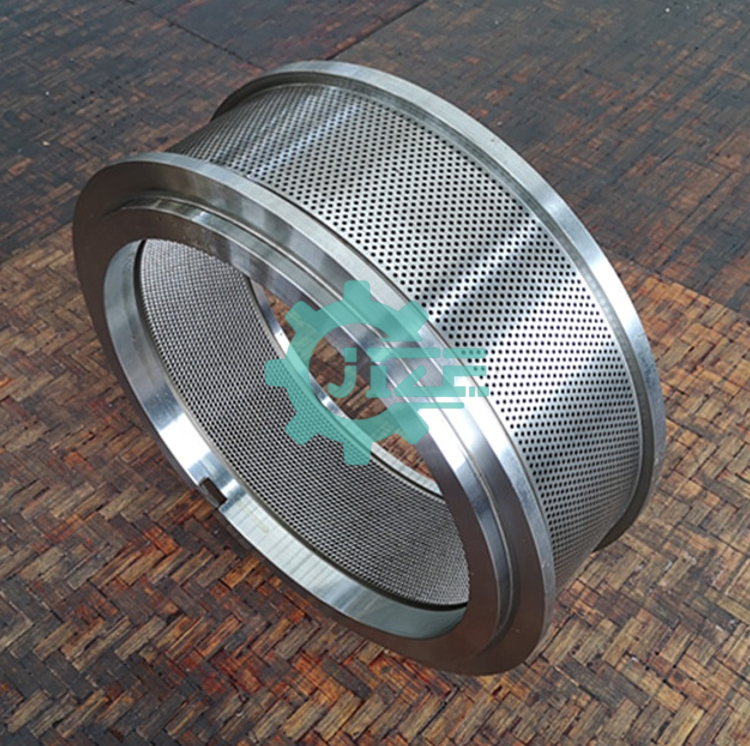

CPP Chicken Feed Pellet Die
Name:CPP150 ring die, CPP200 pellet die, CPP360 pellet machine ring die, CPP300 feed pellet die, CSP020 feed pellet mill die, CPP feed pellet machine die, CPP pellet machine matrix, CPP chicken feed pellet ring die, CPP pellet machine roller.
Raw material:
Ring die: alloy steel 20CrMnTi, stainless steel X46Cr13.
Roller: alloy steel 40Cr or 20CrMnTi (Chinese standard), 20MnCr5 (Germany standard), 100Cr6 (bearing steel).
Hole diamter: φ1mm-φ14mm.
Compression ratio: 1:2-1:28.
Processing machines:
20 sets auto gun-drilling machines(3 sets deepth holes drilling machines, can drill max 140mm thickness holes, can drill min 1.0mm diameter holes).
6 sets auto counter-sinking machines.
6 sets auto CNC lathing machines.
2 sets vacuum heat treatment machines.
Delivery time: mostly 10-35 days.
Packing way: wooden box.
Accept customized!!!
Model:

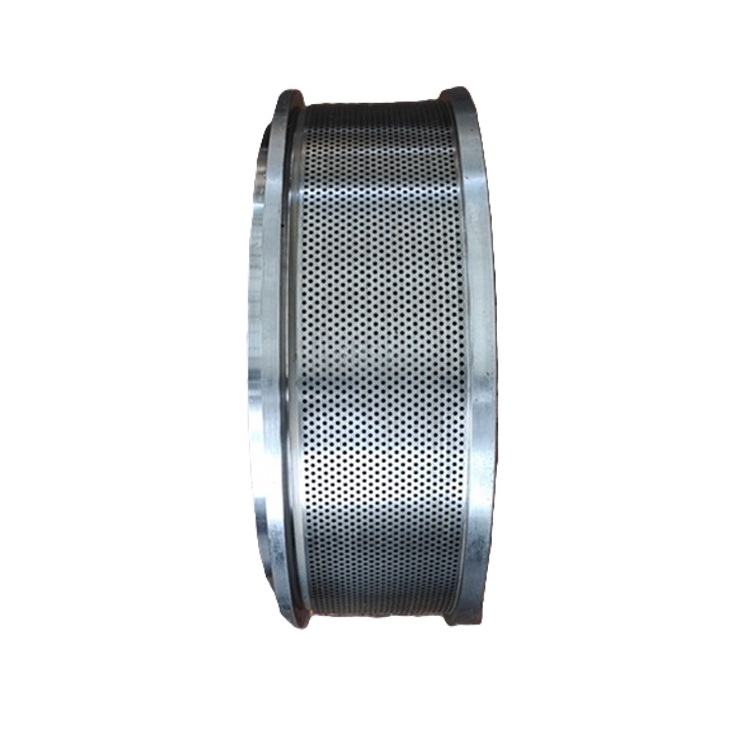

CPP 150 chicken cattle feed ring die:

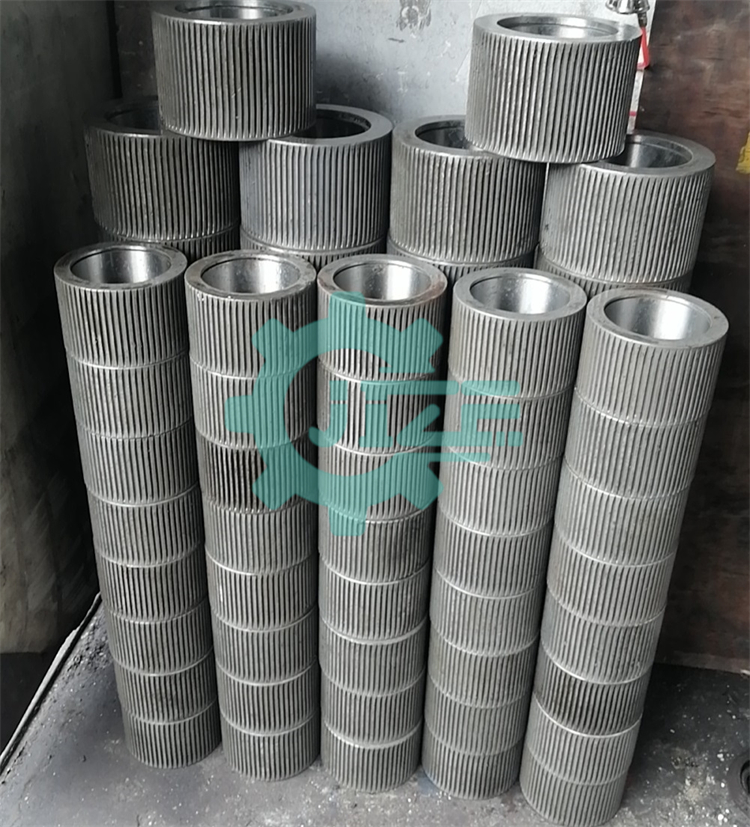

CPP pellet machine roller:
|
