Roller quality certificate

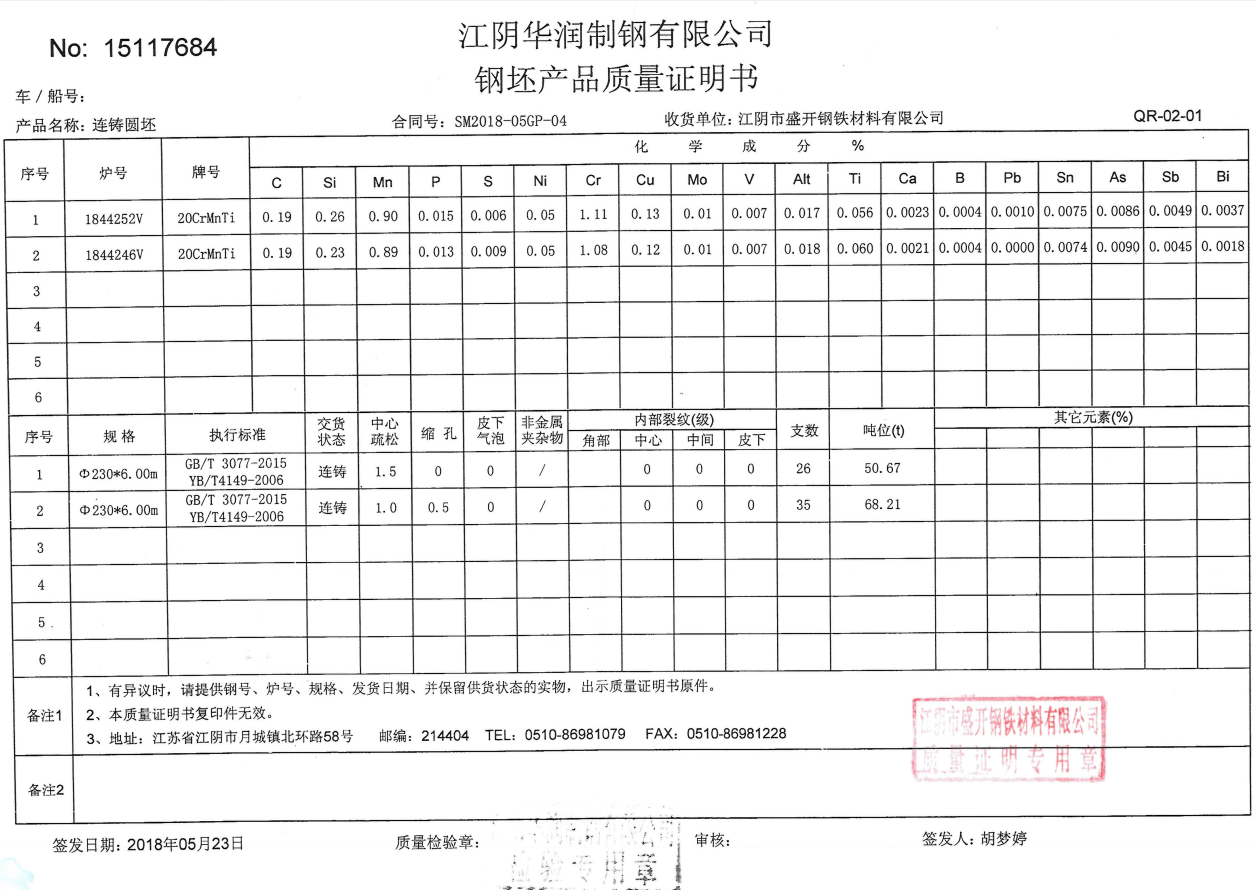

20CrMnTi pellet roller raw material certificate

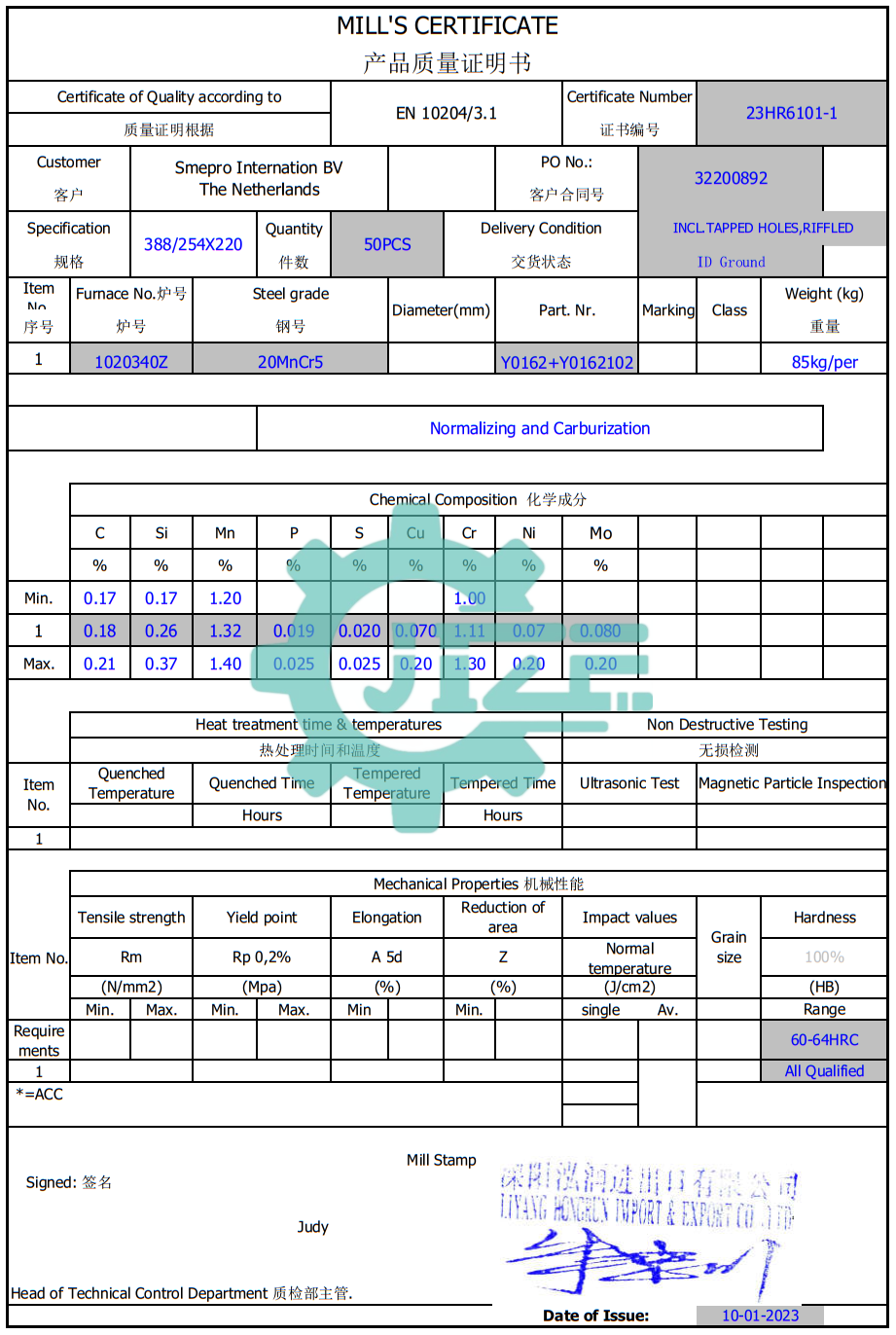

20MnCr5 pellet roller raw material certificate
20 Years professional manufacturer offer all kinds of ring die & roller for: SZLH(Zhengchang), MUZL(Muyang, Famsun), Andritz, IDAH, Awila, CPP, CPM, Buhler, Berga, HKJ, Lamec(La Meccanica), MZLH, XGJ(Yulong), OGM, PTN, Yemmak, Shende, Van Aarsen, Heesen, Paladin, Sprout, Kiran, Munch, Etc. And falt die & roller for: Kahl 37-850, 38-780, C39-1000, 40-1000, 45-1250, 65-1250.
Raw material:
Flat die / ring die (forging steel): alloy steel 20CrMnTi, stainless steel X46Cr13.
Roller: alloy steel 40Cr or 20CrMnTi (Chinese standard), 20MnCr5 (Germany standard), 100Cr6 (bearing steel).
Hole diamter: φ1mm-φ14mm.
Compression ratio: 1:2-1:28.
Processing machines:
20 sets auto gun-drilling machines(3 sets deepth holes drilling machines, can drill max 140mm thickness holes, can drill min 1.0mm diameter holes).
6 sets auto counter-sinking machines.
6 sets auto CNC lathing machines.
2 sets vacuum heat treatment machines.
Delivery time: mostly 10-35 days.
Packing way: wooden box.
Accept customized!!!
|
