Kahl 37-850 Flat Die
Name: KAHL 38-780 flat die, KAHL 37-850 pellet die, KAHL C39-1000 feed pellet machine flat die, KAHL 40-1000 wood pellet making flat die, KAHL 45-1250 pellet machine flat die, KAHL 65-1250 pellet flat matrix, KAHL 38-780 feed pellet flat matrix, KAHL 37-850 pellet flat die, KAHL 45-1250 pellet flat matrix, KAHL 65-1250 wood pellet machine flat die, KAHL pellet machine matrix, KAHL flat die, KAHL pellet machine roller.
Model: KAHL38-780, KAHL37-850, KAHL39-1000, KAHL40-1000, KAHL45-1250, KAHL65-1250.
Raw material:
Ring die /flat Die (forging steel): alloy steel 20CrMnTi, stainless steel X46Cr13.
Roller: alloy steel 40Cr or 20CrMnTi (Chinese standard), 20MnCr5 (Germany standard), 100Cr6 (bearing steel).
Hole diamter: φ0.6mm-φ12mm.
Compression ratio: 1:2-1:28.
Processing machines:
20 sets auto gun-drilling machines(3 sets deepth holes drilling machines, can drill max 140mm thickness holes, can drill min 1.0mm diameter holes).
6 sets auto counter-sinking machines.
6 sets auto CNC lathing machines.
2 sets vacuum heat treatment machines.
Delivery time: mostly 10-35 days.
Packing way: wooden box.
Accept customized!!!

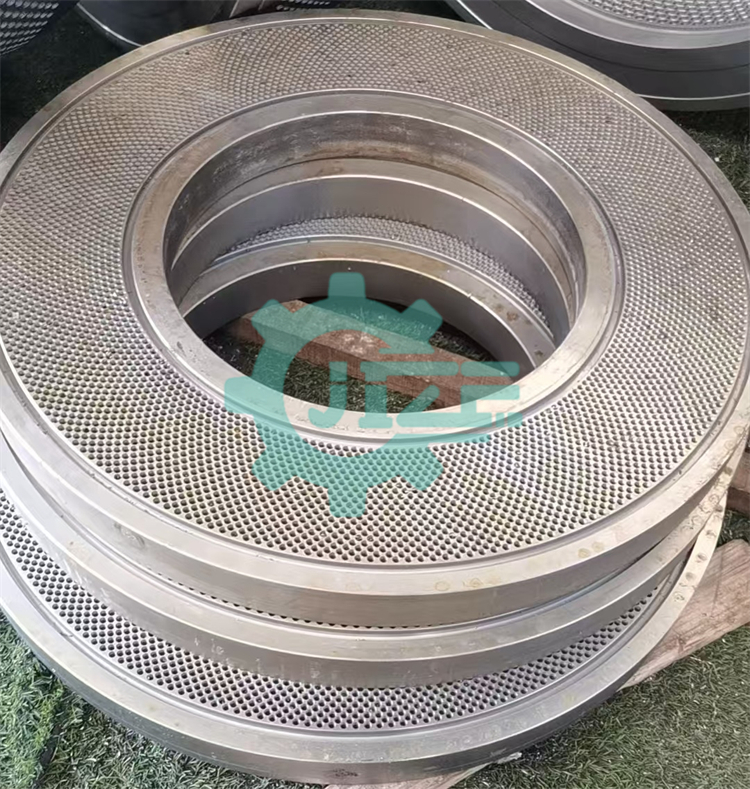

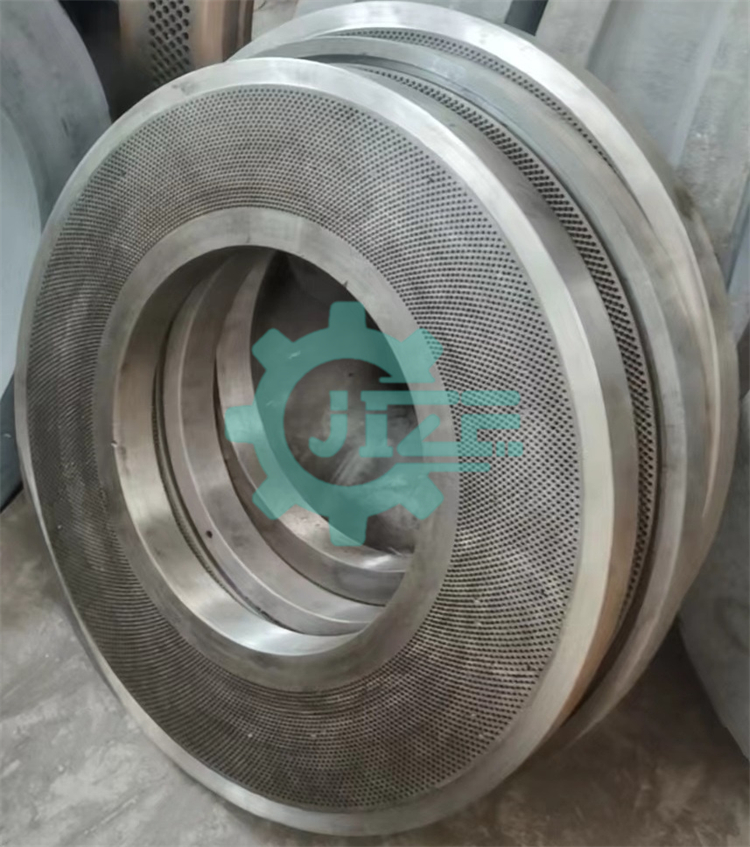

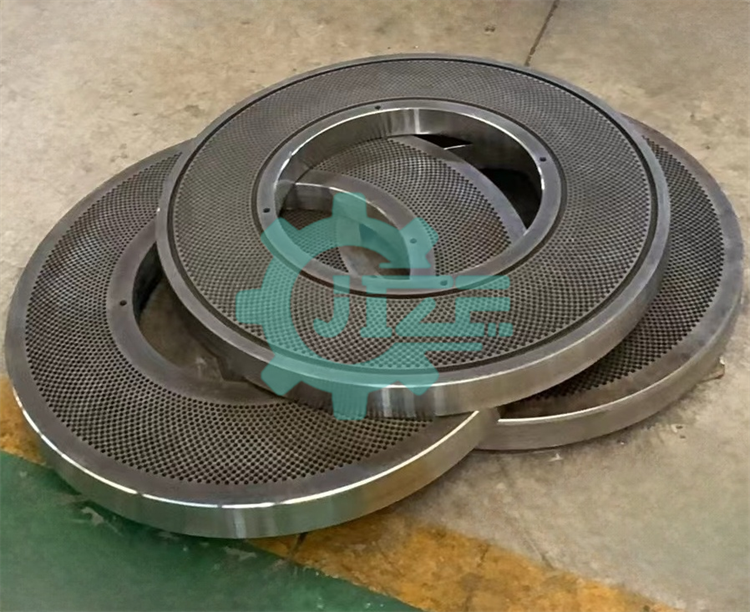

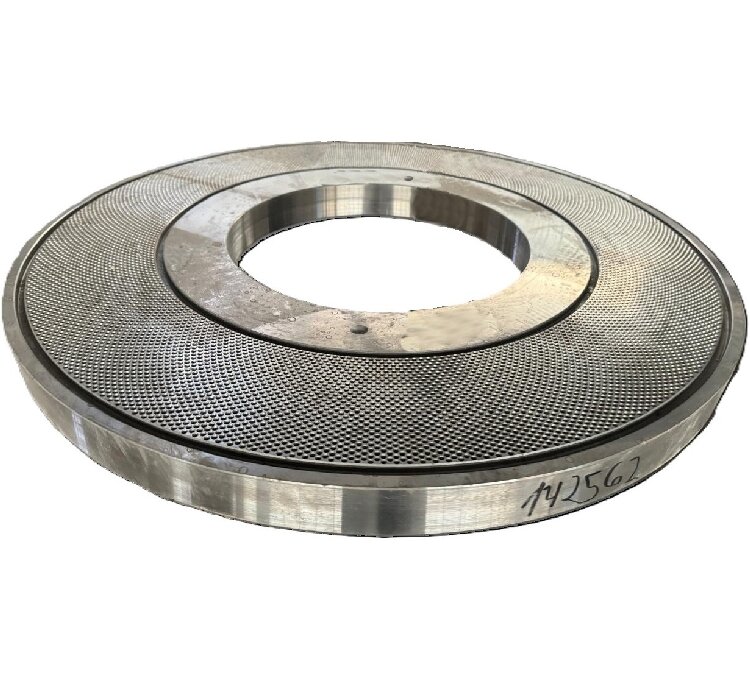

Kahl 37-850 pellet machine flat matrix:

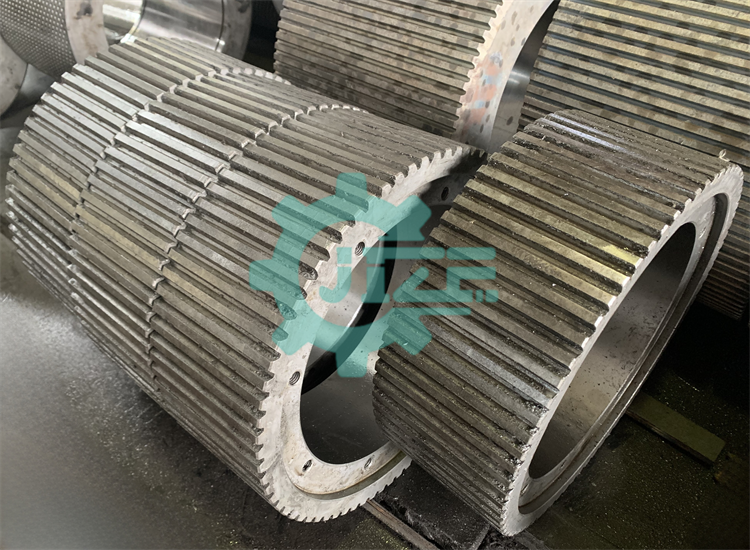

Kahl 37-850 pellet mill roller:
|
