Andritz Pellet Machine Ring Die
Name: PM 615W ring die, PM 615XW pellet die, PM 717XW pellet machine ring die, PM 717XWT feed pellet die, PM615W feed pellet mill die, PM615XW feed pellet machine die, PM717XW pellet machine matrix, PM717XWT pellet mill matrix, Andritz feed pellet mill matrix, Andritz pellet mill ring die, Andritz pellet machine ring die, Andritz pellet machine roller.
Model: PM 615W, PM 615XW, PM 717XW...
Raw material:
Ring die: alloy steel 20CrMnTi, stainless steel X46Cr13.
Roller: alloy steel 40Cr or 20CrMnTi (Chinese standard), 20MnCr5 (Germany standard), 100Cr6 (bearing steel).
Hole diamter: φ1mm-φ14mm.
Compression ratio: 1:2-1:28.
Processing machines:
20 sets auto gun-drilling machines(3 sets deepth holes drilling machines, can drill max 140mm thickness holes, can drill min 1.0mm diameter holes).
6 sets auto counter-sinking machines.
6 sets auto CNC lathing machines.
2 sets vacuum heat treatment machines.
Delivery time: mostly 10-35 days.
Packing way: wooden box.
Accept customized!!!

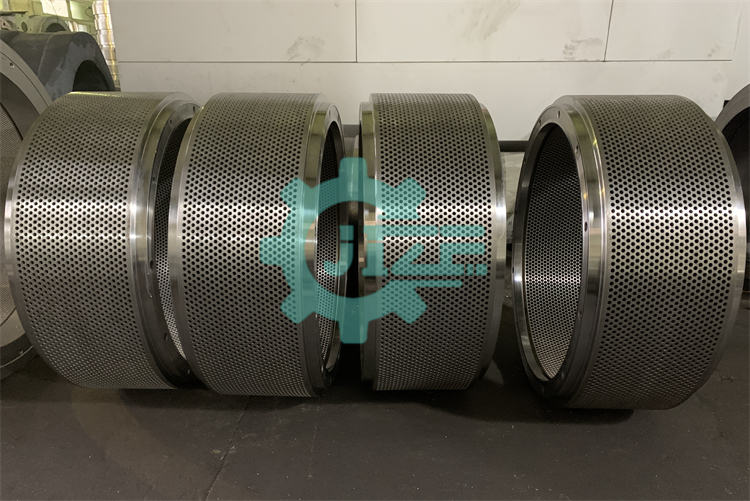

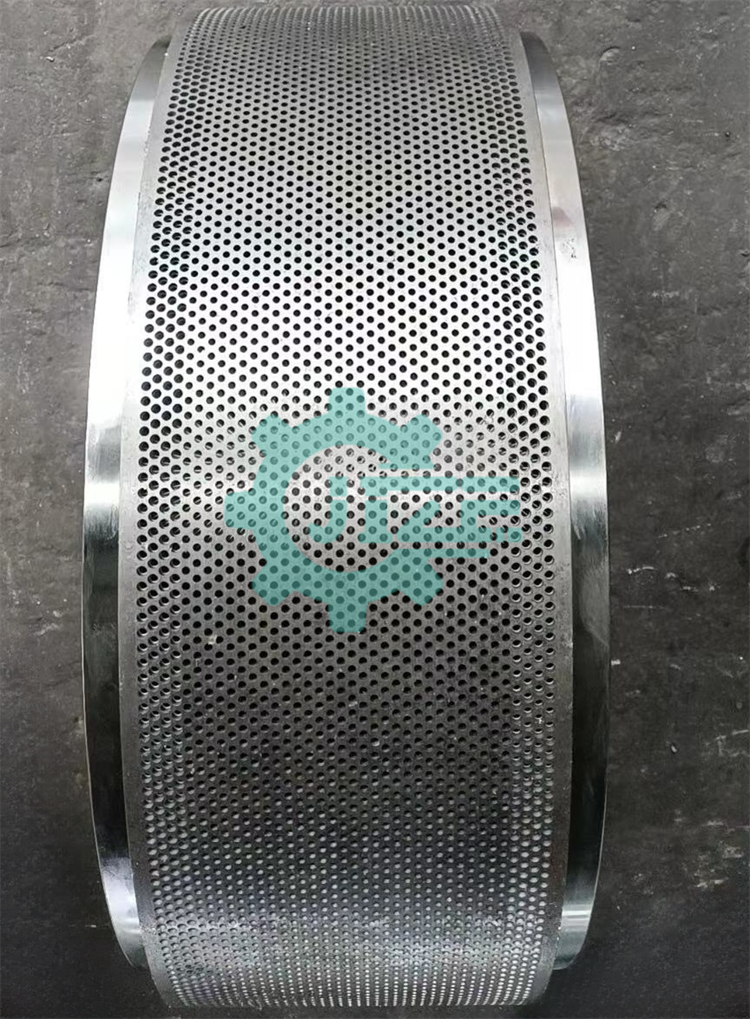

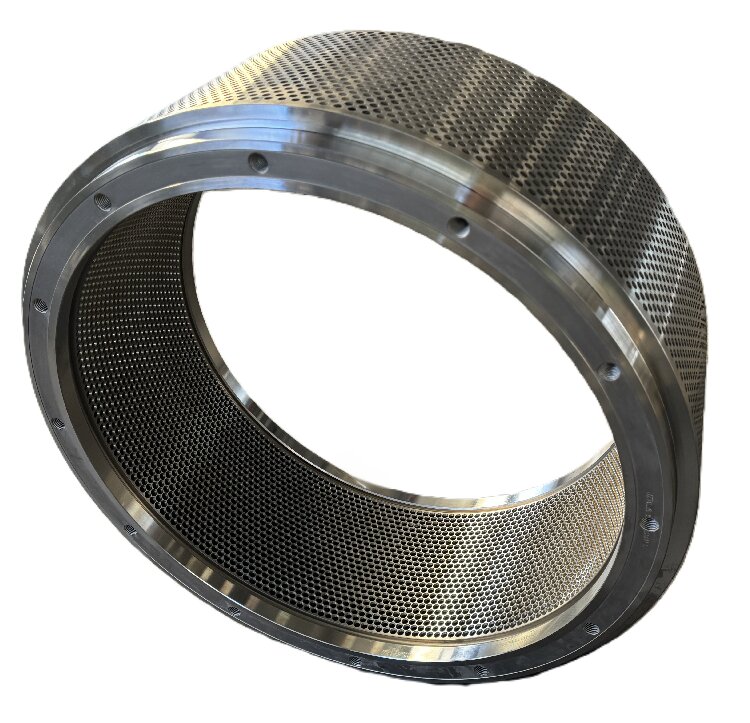

Andritz 717XW pellet mill ring die:
|
