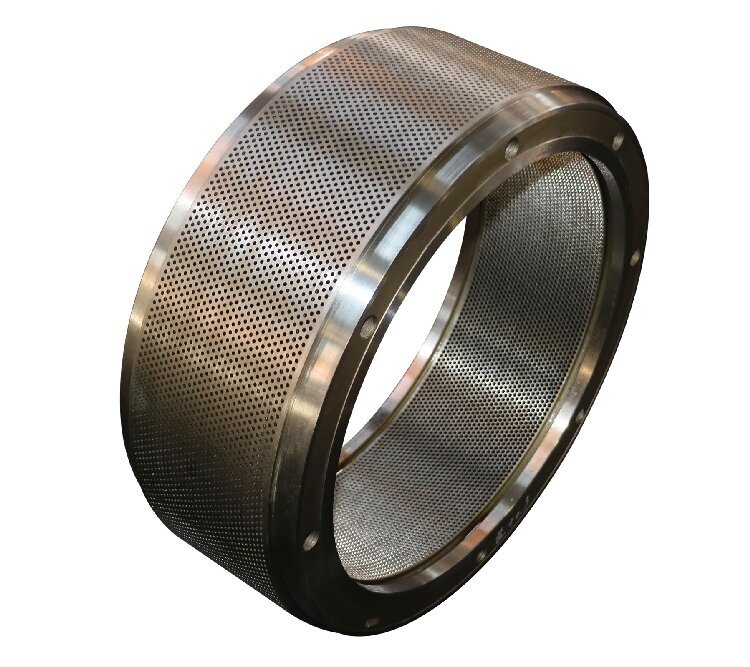

Paladin Pellet Producing Ring Die
Name: Paladin 350 ring die, Paladin 600B pellet die, Paladin 1200B pellet machine ring die, Paladin 600D feed pellet die, Paladin 1200D feed pellet mill die, Paladin 1600 feed pellet machine die, Paladin 2000 pellet machine matrix, Paladin 2000W pellet mill matrix, Paladin feed pellet mill matrix, Paladin pellet mill ring die, Paladin pellet machine ring die, Paladin pellet machine roller.
Model: Paladin 350, Paladin 600B, Paladin 1200B, Paladin 600D, Paladin 1200D, Paladin 1600, Paladin 2000, Paladin 2000W
Raw material:
Ring die: alloy steel 20CrMnTi, stainless steel X46Cr13.
Roller: alloy steel 40Cr or 20CrMnTi (Chinese standard), 20MnCr5 (Germany standard), 100Cr6 (bearing steel).
Hole diamter: φ1mm-φ14mm.
Compression ratio: 1:2-1:28.
Processing machines:
20 sets auto gun-drilling machines(3 sets deepth holes drilling machines, can drill max 140mm thickness holes, can drill min 1.0mm diameter holes).
6 sets auto counter-sinking machines.
6 sets auto CNC lathing machines.
2 sets vacuum heat treatment machines.
Delivery time: mostly 10-35 days.
Packing way: wooden box.
Accept customized!!!

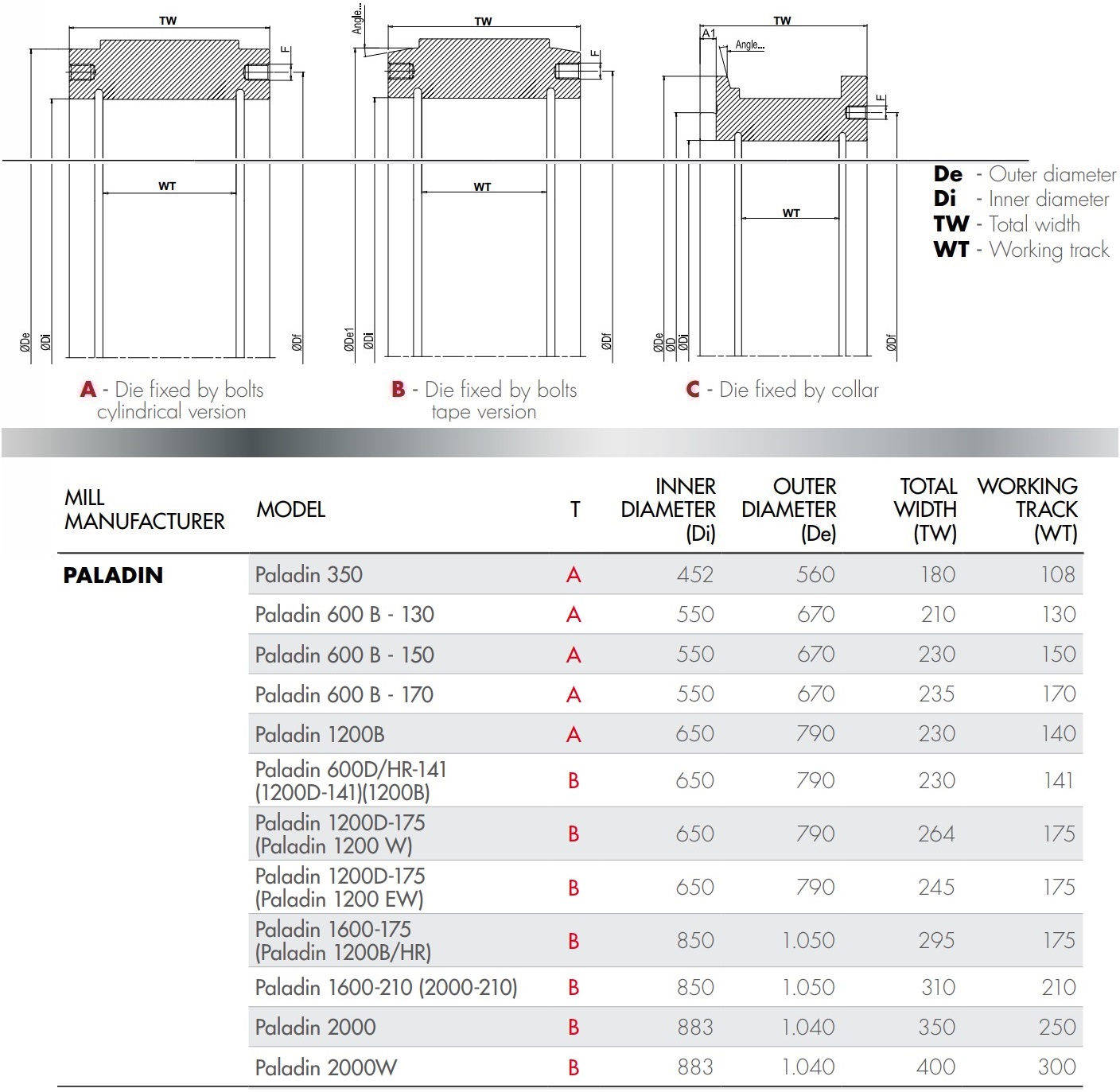

Model:
|
