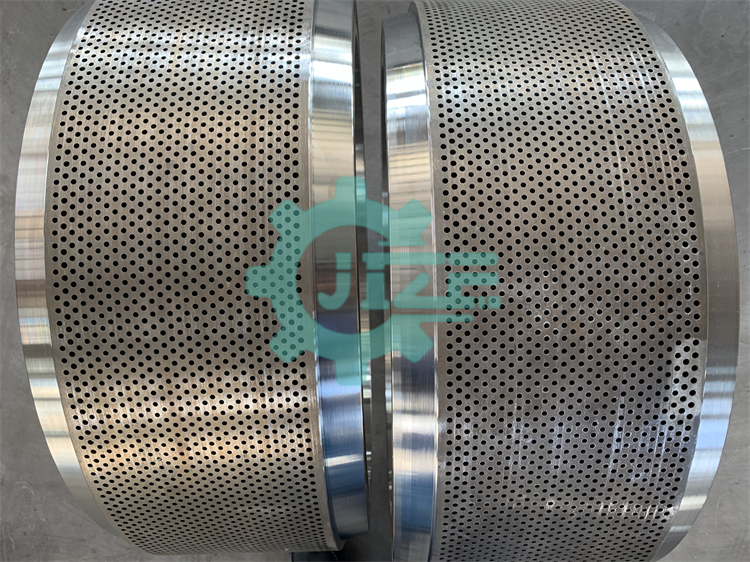

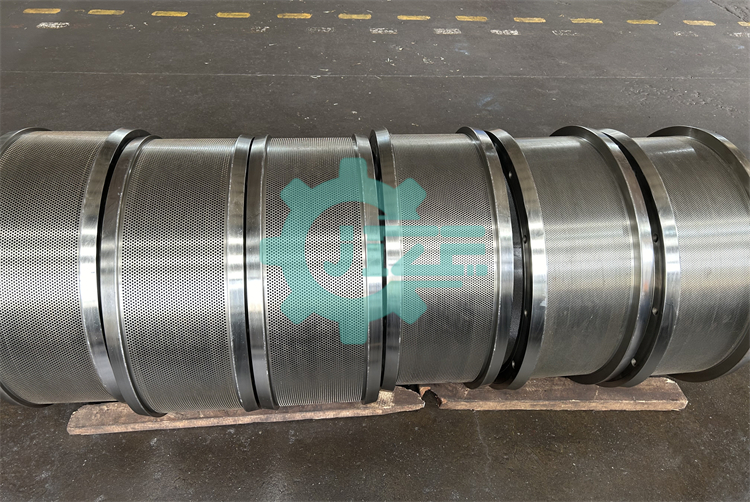

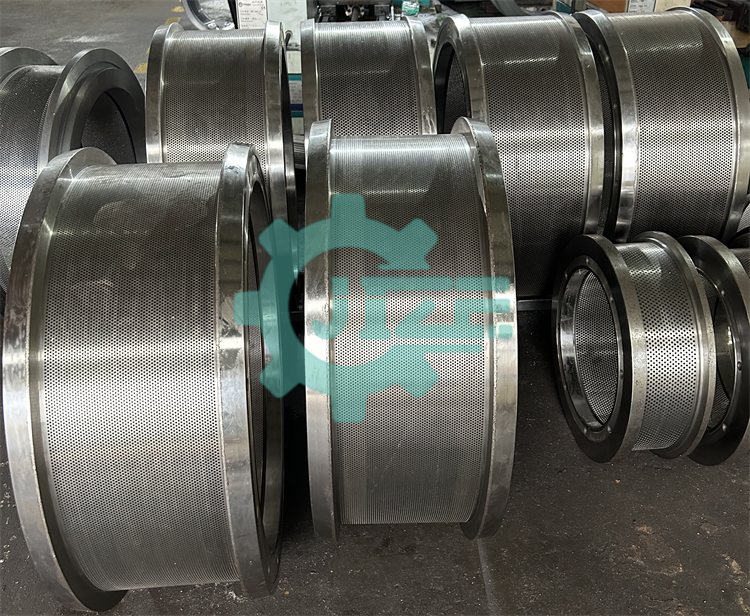

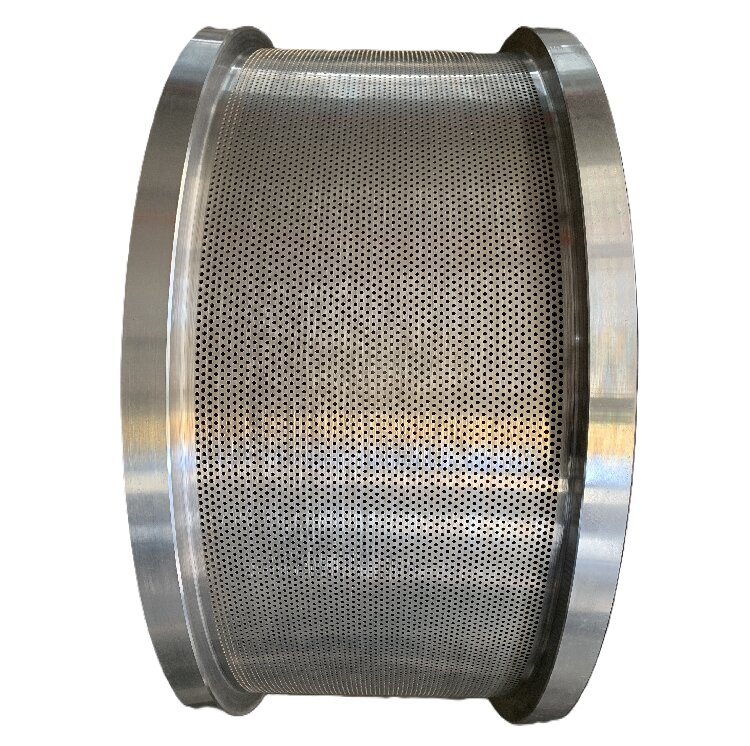

Yemmak Pelletizer Ring Die
Name: Yemmak 420 ring die, Yemmak 520 pellet die, Yemmak 660 pellet machine ring die, Yemmak 900 feed pellet die, Yemmak 420 feed pellet mill die, Yemmak 520 feed pellet machine die, Yemmak 660 pellet machine matrix, Yemmak 900 pellet mill matrix, Yemmak 420 feed pellet mill matrix, Yemmak 520 pellet mill ring die, Yemmak pellet machine ring die, Yemmak pellet machine roller.

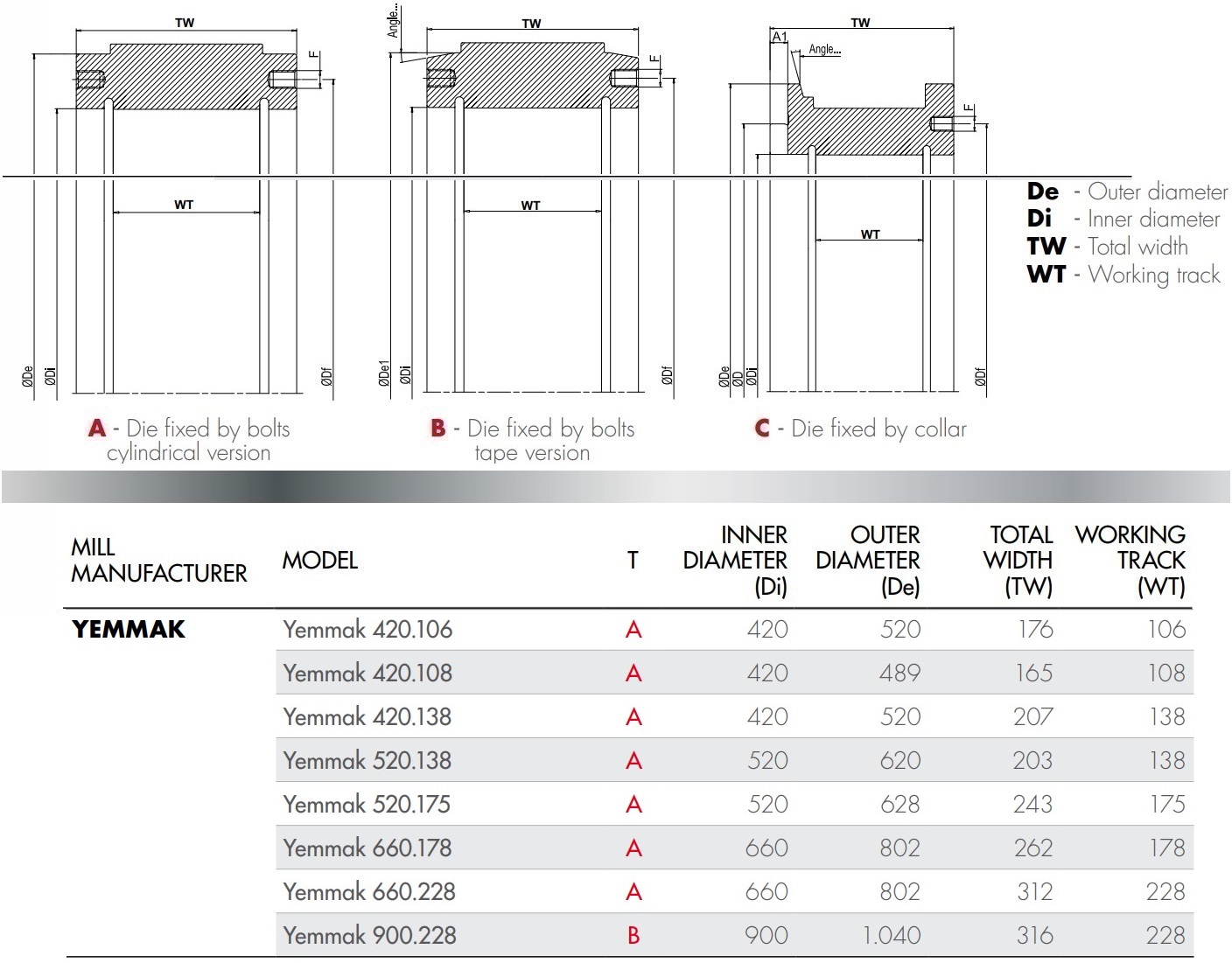

Model: Yemmak 420, Yemmak 520, Yemmak 660, Yemmak 900.
Raw material:
Ring die: alloy steel 20CrMnTi, stainless steel X46Cr13.
Roller: alloy steel 40Cr or 20CrMnTi (Chinese standard), 20MnCr5 (Germany standard), 100Cr6 (bearing steel).
Hole diamter: φ1mm-φ14mm.
Compression ratio: 1:2-1:28.
Processing machines:
20 sets auto gun-drilling machines(3 sets deepth holes drilling machines, can drill max 140mm thickness holes, can drill min 1.0mm diameter holes).
6 sets auto counter-sinking machines.
6 sets auto CNC lathing machines.
2 sets vacuum heat treatment machines.
Delivery time: mostly 10-35 days.
Packing way: wooden box.
Accept customized!!!
Model:
Yemmak 520 feed pellet pressing machine die:

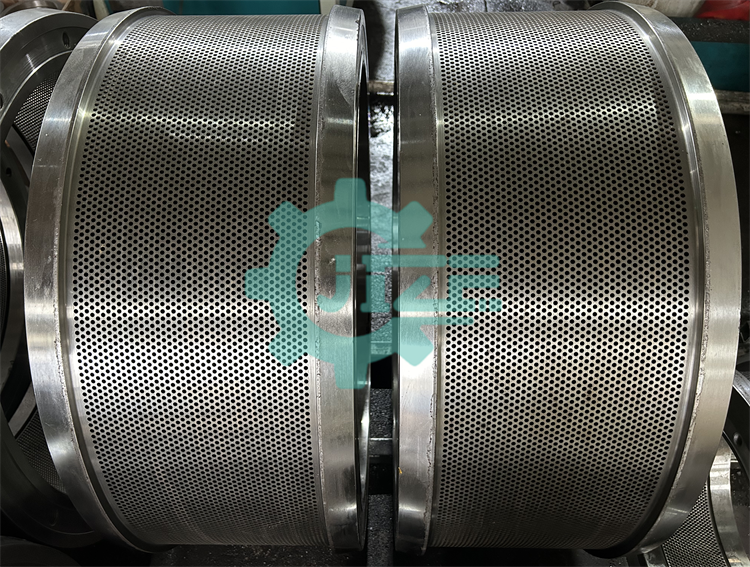

Yemmak 660 feed pelleting machine ring die:

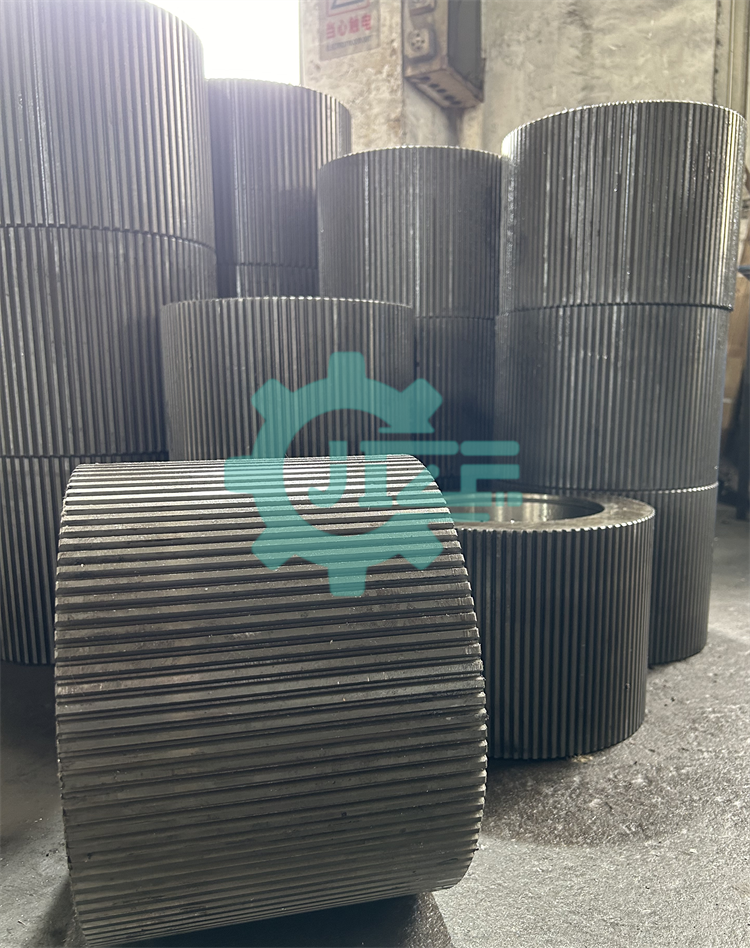

Yemmak pellet machine roller:
|
