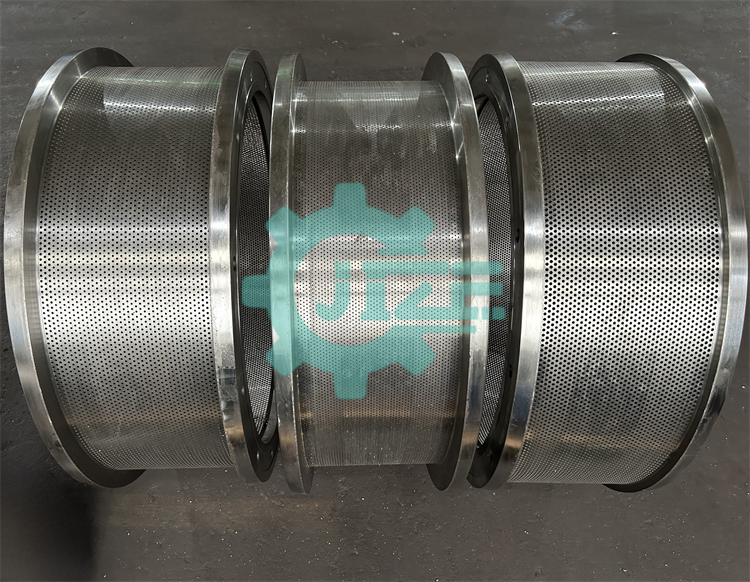

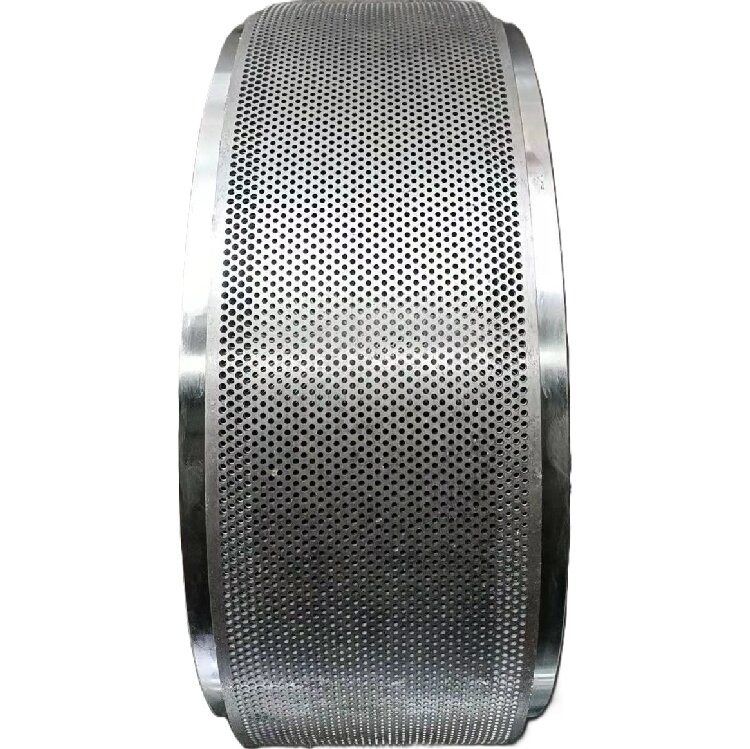

SDPM(ShenDe) Pellet Mill Die
Name: SDPM 250 (shende 250) ring die, SDPM 350 (shende 350) pellet die, SDPM 420 (shende 420) pellet machine ring die, SDPM 520 (shende 520) feed pellet die, SDPM 250 (shende 250) feed pellet mill die, SDPM 660 (shende 660) feed pellet machine die, SDPM250 pellet machine matrix, SDPM 350 pellet mill matrix, SDPM 420 feed pellet mill matrix, SDPM520 pellet mill ring die, SDPM660 pellet machine ring die, SDPM pellet machine roller.
Model: SDPM 250 (shende 250), SDPM 350 (shende 350), SDPM 420 (shende 420), SDPM 520 (shende 520), SDPM 660 (shende 660) .
Raw material:
Ring die: alloy steel 20CrMnTi, stainless steel X46Cr13.
Roller: alloy steel 40Cr or 20CrMnTi (Chinese standard), 20MnCr5 (Germany standard), 100Cr6 (bearing steel).
Hole diamter: φ1mm-φ14mm.
Compression ratio: 1:2-1:28.
Processing machines:
20 sets auto gun-drilling machines(3 sets deepth holes drilling machines, can drill max 140mm thickness holes, can drill min 1.0mm diameter holes).
6 sets auto counter-sinking machines.
6 sets auto CNC lathing machines.
2 sets vacuum heat treatment machines.
Delivery time: mostly 10-35 days.
Packing way: wooden box.
Accept customized!!!

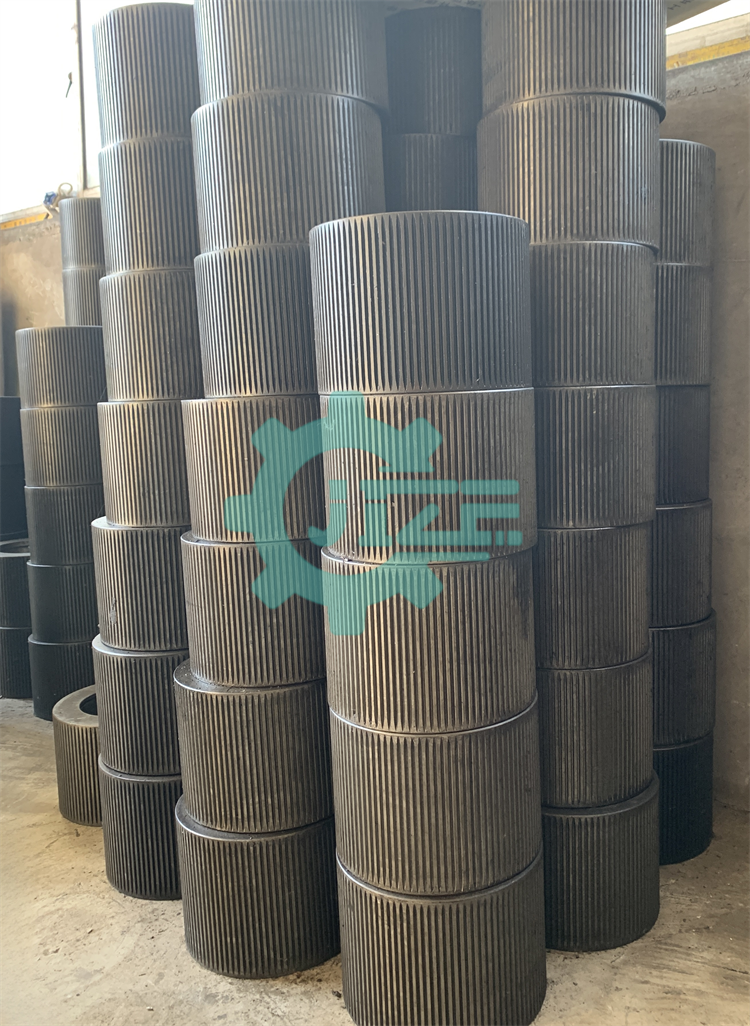

SDPM / SHENDE pellet mill roller:
|
