Name: Lamec 304 (La Meccanica 304) ring die, Lamec 420 (La Meccanica 420) pellet die, Lamec 520 (La Meccanica 520) pellet machine ring die, Lamec 630 (La Meccanica 630) feed pellet die, Lamec 800 (La Meccanica 800) feed pellet mill die, Lamec 420 (La Meccanica 420) feed pellet machine die, Lamec 520 (La Meccanica 520) pellet machine matrix, Lamec 630 (La Meccanica 630) pellet mill matrix, Lamec 800 (La Meccanica 800) feed pellet mill matrix, Lamec 935 (La Meccanica 935) pellet mill ring die, Lamec (La Meccanica) pellet machine ring die & pellet machine roller.
Model: Lamec 304 (La Meccanica 304) , Lamec 420 (La Meccanica 420) , Lamec 520 (La Meccanica 520) , Lamec 630 (La Meccanica 630) , Lamec 800 (La Meccanica 800) , Lamec 935 (La Meccanica 935)
Raw material:
Ring die: alloy steel 20CrMnTi, stainless steel X46Cr13.
Roller: alloy steel 40Cr or 20CrMnTi (Chinese standard), 20MnCr5 (Germany standard), 100Cr6 (bearing steel).
Hole diamter: φ1mm-φ14mm.
Compression ratio: 1:2-1:28.
Processing machines:
20 sets auto gun-drilling machines(3 sets deepth holes drilling machines, can drill max 140mm thickness holes, can drill min 1.0mm diameter holes).
6 sets auto counter-sinking machines.
6 sets auto CNC lathing machines.
2 sets vacuum heat treatment machines.
Delivery time: mostly 10-35 days.
Packing way: wooden box.
Accept customized!!!

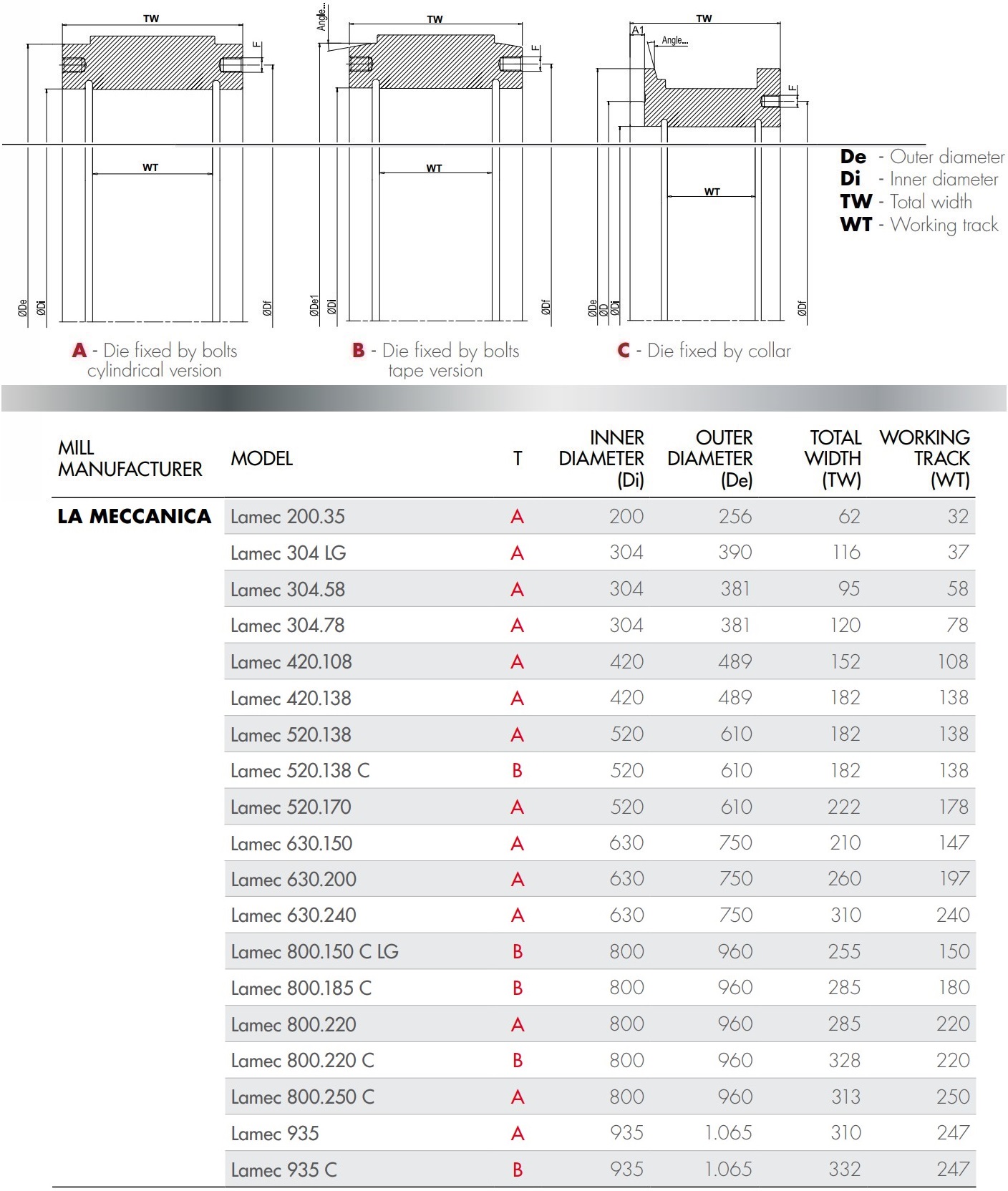

Model:

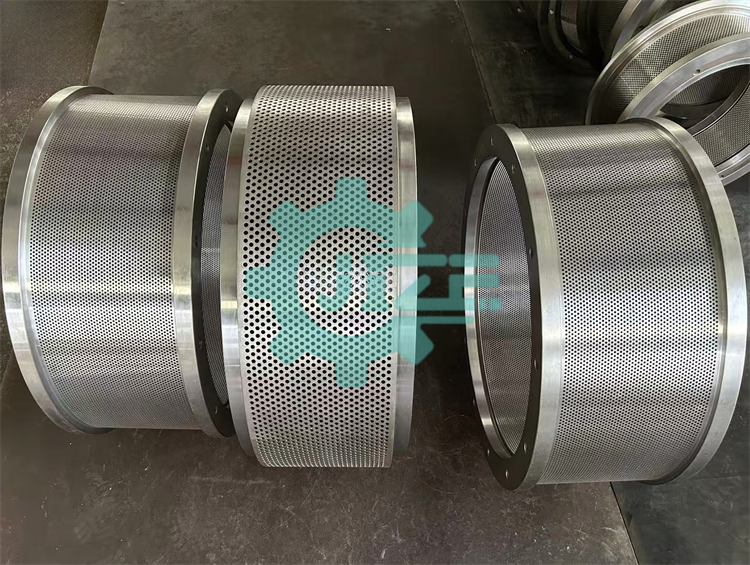

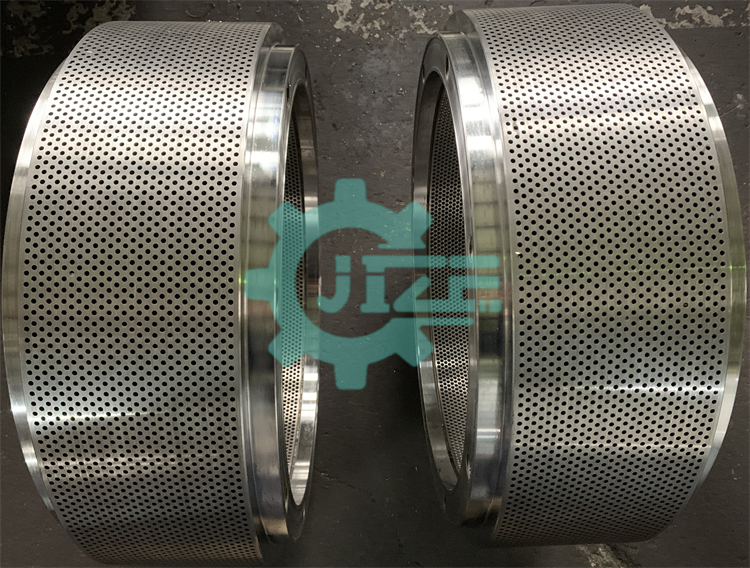

Lamec 420 (La Meccanica 420) feed pellet machine ring die:

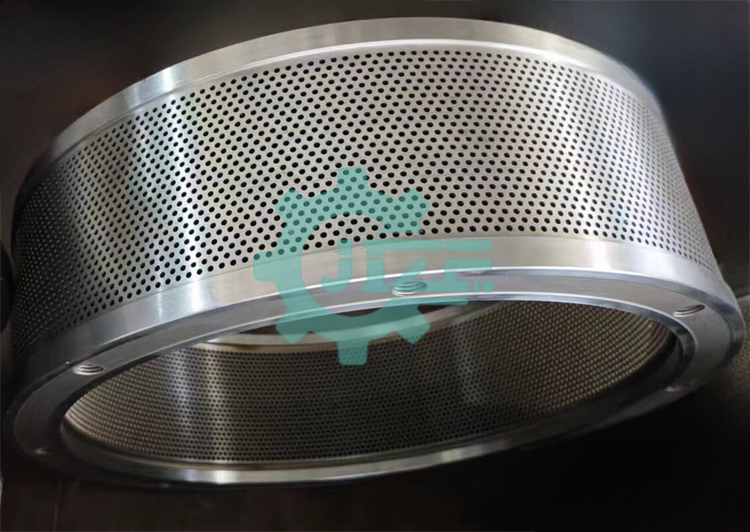

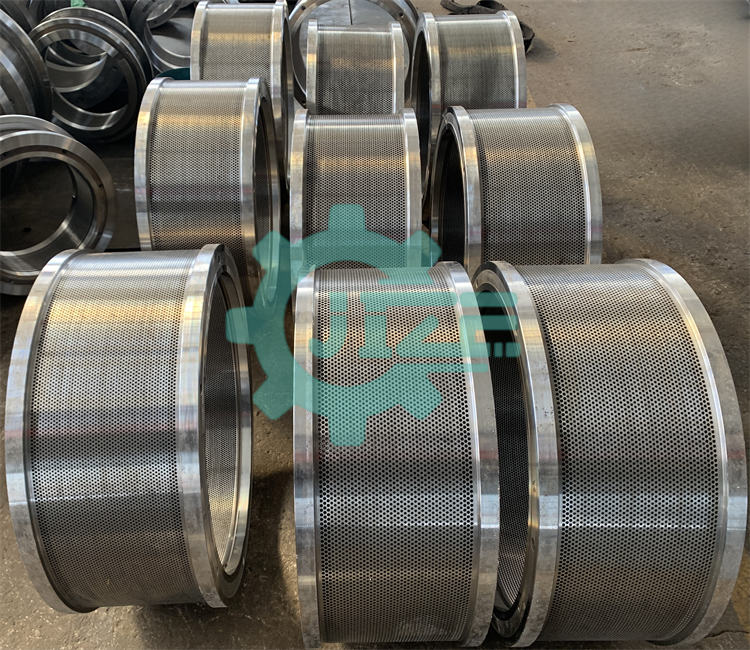

Lamec 520 (La Meccanica 520) animal feed pellet die:

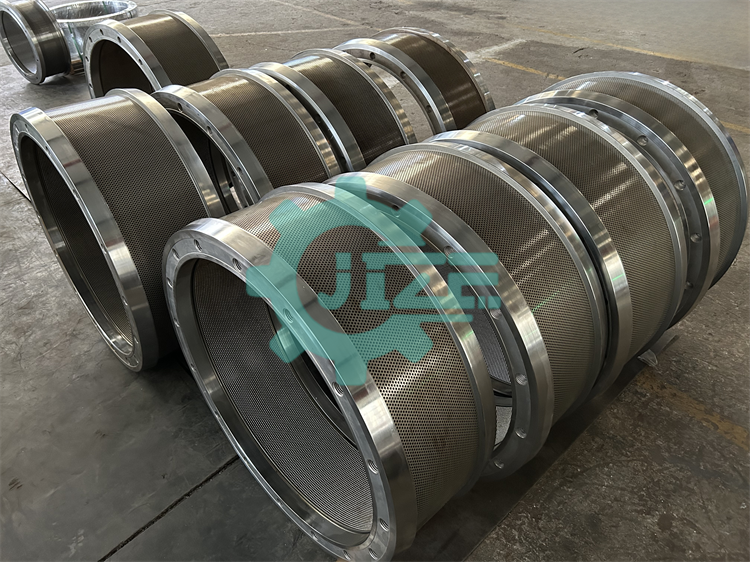

Lamec 630 (La Meccanica 630) poultry feed pellet pressing ring die:

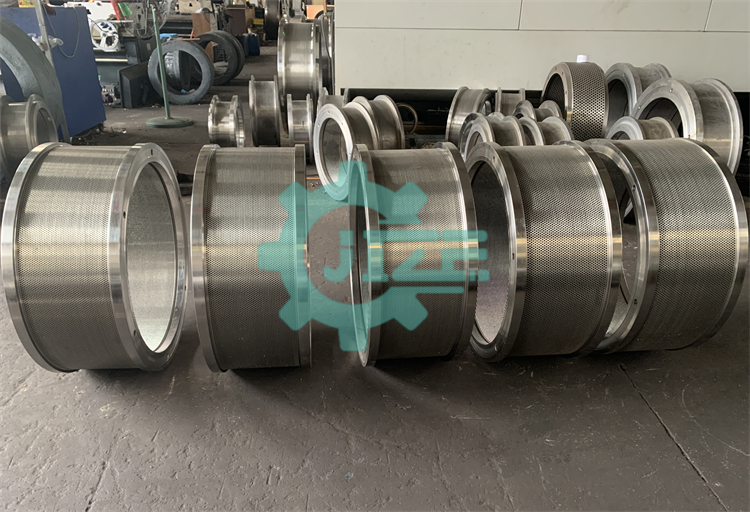

Lamec 800 (La Meccanica 800) feed pellet mill machine die:

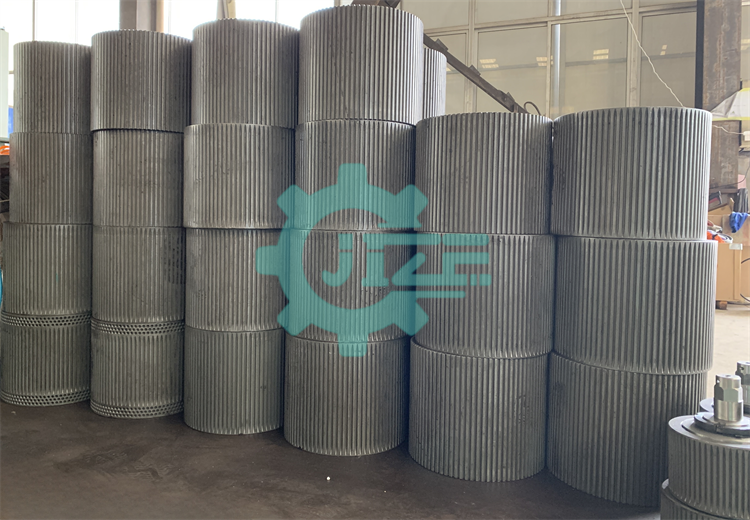

Lamec (La Meccanica) feed pellet machine roller:
