Berga Pellet Matrix
Name: Berga PC1 ring die, Berga PC2 pellet die, Berga PC3 pellet machine ring die, Berga PC M3 feed pellet die, Berga PC4 feed pellet mill die, Berga PC M4 feed pellet machine die, Berga PC M5 pellet machine matrix, Berga PC M6 pellet mill matrix, Berga feed pellet mill matrix, Berga pellet mill ring die, Berga pellet machine roller.

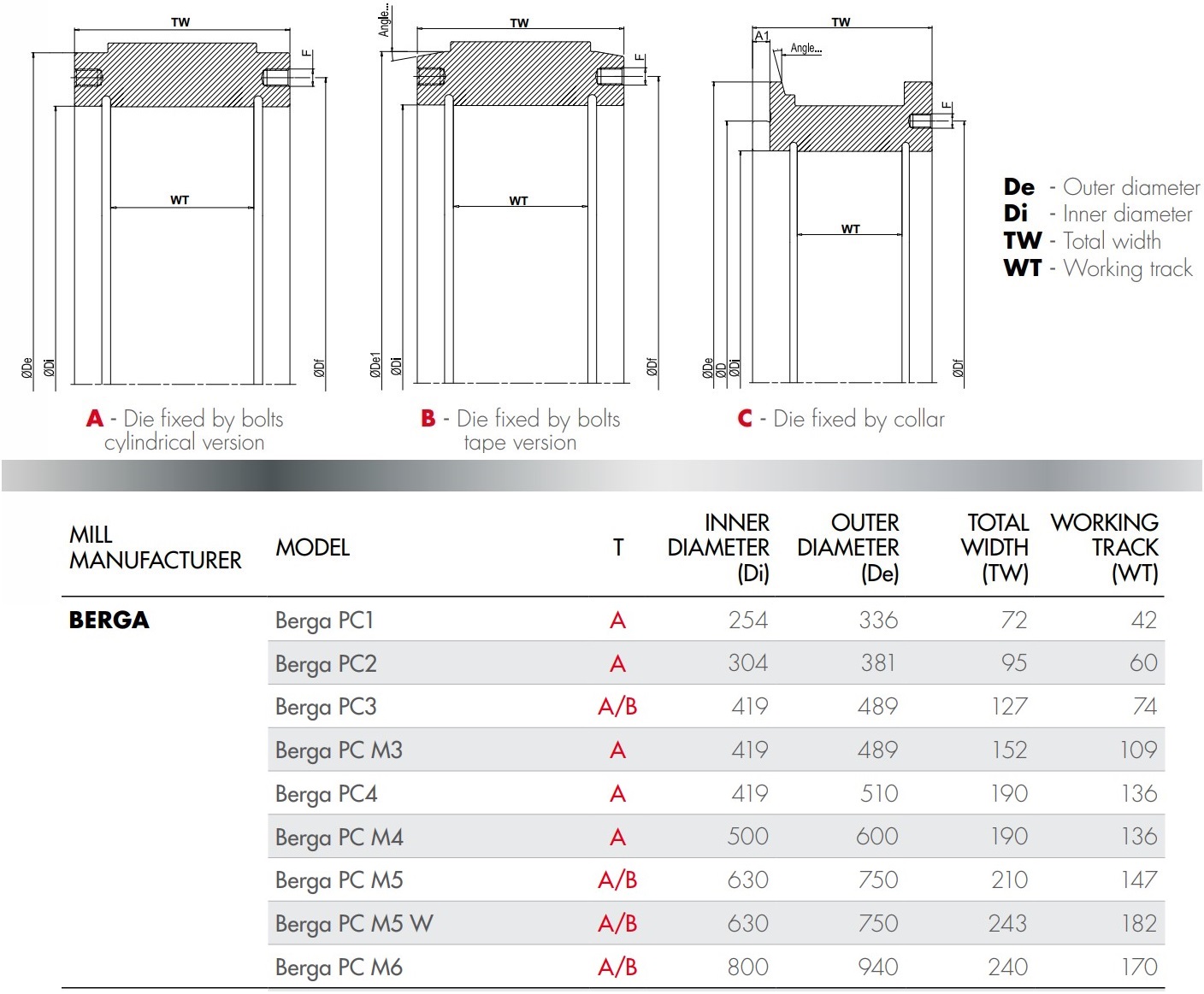

Model: Berga PC1, Berga PC2, Berga PC M3, Berga PC M4, Berga PCM5, Berga PC M6 pellet pressing die.
Raw material:
Ring die: alloy steel 20CrMnTi, stainless steel X46Cr13.
Roller: alloy steel 40Cr or 20CrMnTi (Chinese standard), 20MnCr5 (Germany standard), 100Cr6 (bearing steel).
Hole diamter: φ1mm-φ14mm.
Compression ratio: 1:2-1:28.
Processing machines:
20 sets auto gun-drilling machines(3 sets deepth holes drilling machines, can drill max 140mm thickness holes, can drill min 1.0mm diameter holes).
6 sets auto counter-sinking machines.
6 sets auto CNC lathing machines.
2 sets vacuum heat treatment machines.
Delivery time: mostly 10-35 days.
Packing way: wooden box.
Accept customized!!!
Model:

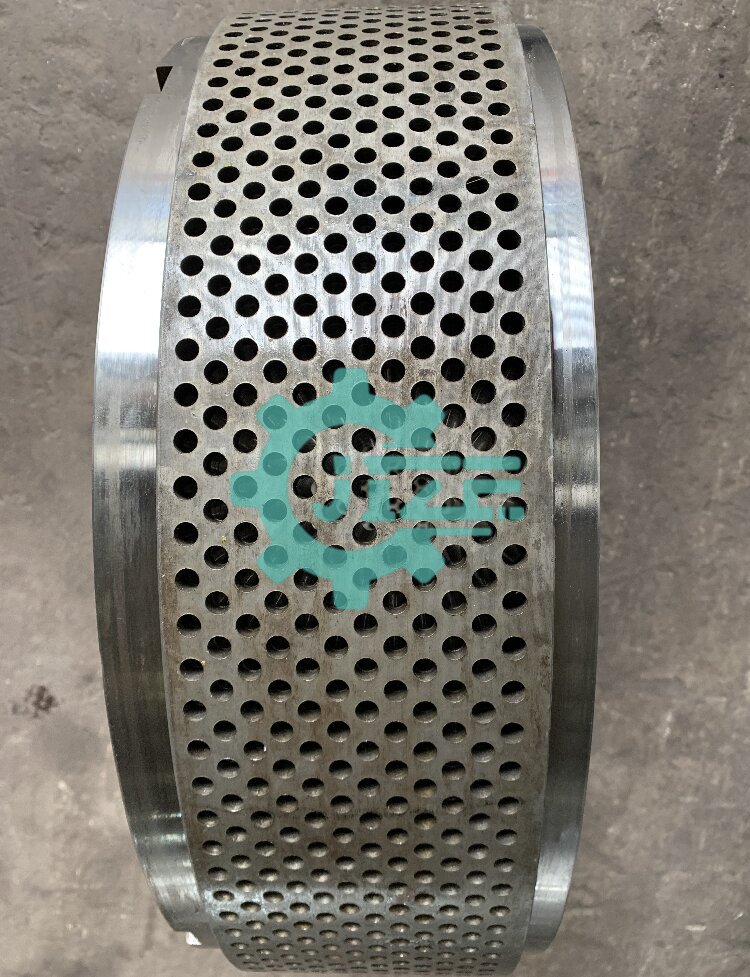

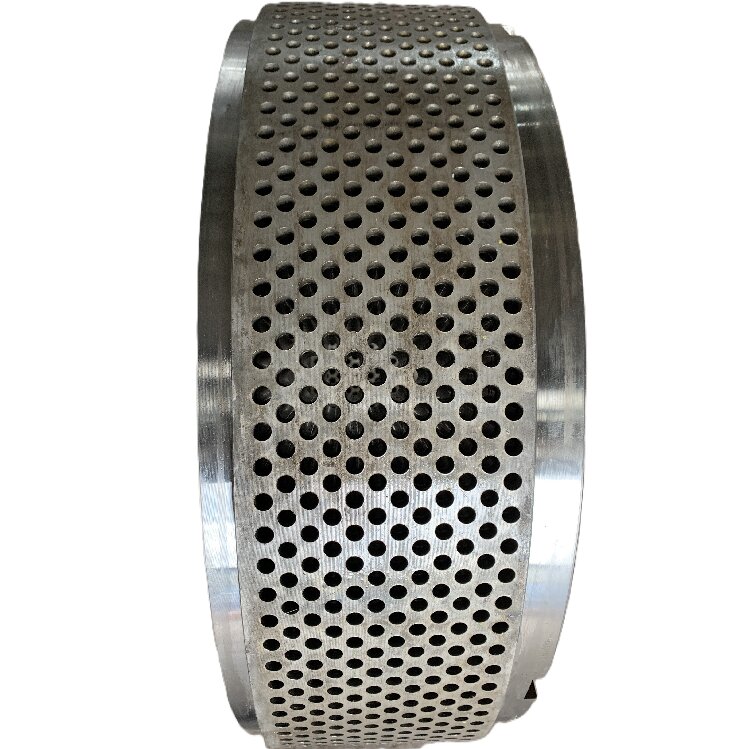

Berga PC M4 ring die:

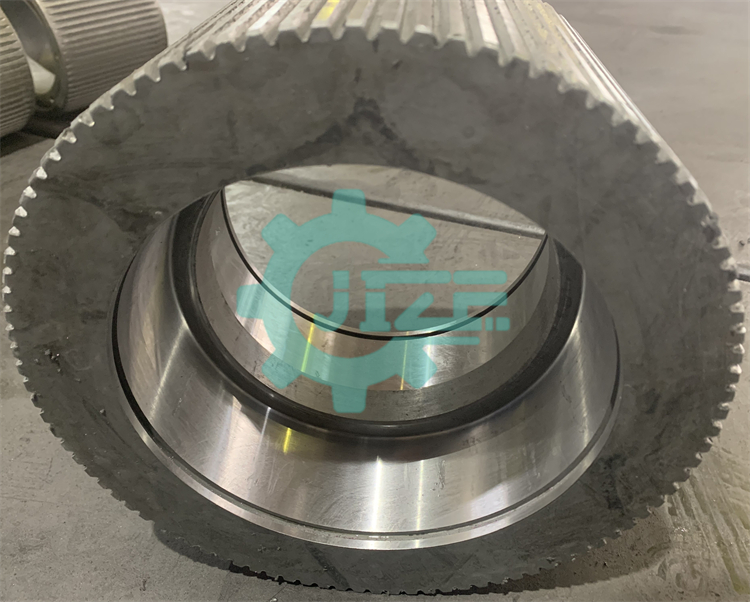

Berga PC M4 pellet mill roller shell:
|
