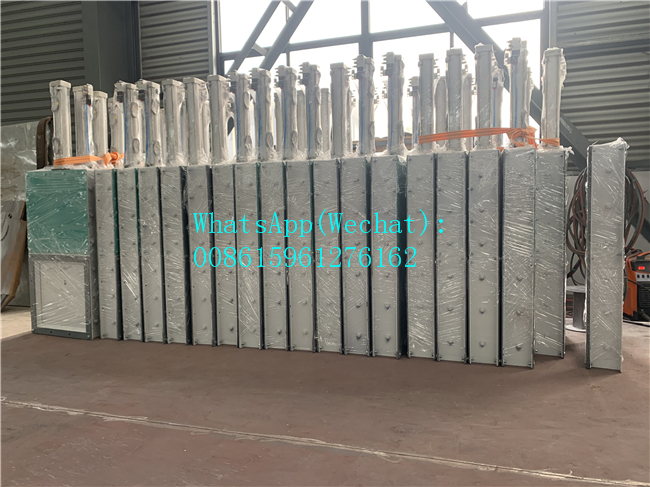

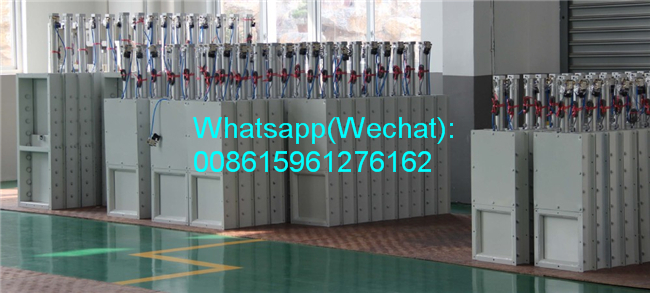

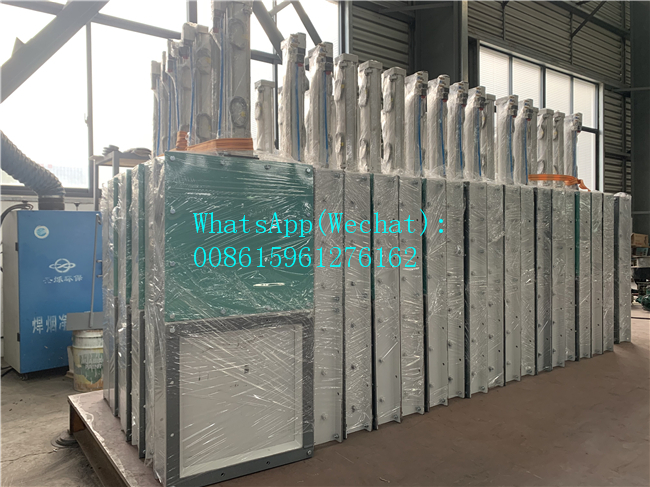

Pneumatic valve
Name: pneumatic slide gate, pneumatic control valve, flow control valve, flow control gate.
Mode: TZMQ20*20,TZMQ25*25,TZMQ32*32,TZMQ40*40,TZMQ50*50,TZMQ60*60,TZMQ70*70...
Raw material: Q235 steel plates or 304 stainless steel plates.
Cylinder: Air-Tac or Festo.
Accept customized!!!
Model:
|
Model
|
Capacity(T/H)
|
Active area(MM)
|
Working pressure(MPa)
|
Weight(KG)
|
|
TZMQ20*20
|
25
|
200*200
|
0.4-0.8
|
20
|
|
TZMQ25*25
|
50
|
250*250
|
0.4-0.8
|
30
|
|
TZMQ32*32
|
100
|
320*320
|
0.4-0.8
|
36
|
|
TZMQ40*40
|
150
|
400*400
|
0.4-0.8
|
50
|
|
TZMQ50*50
|
200
|
500*500
|
0.4-0.8
|
76
|
|
TZMQ60*60
|
300
|
600*600
|
0.4-0.8
|
125
|
|
TZMQ70*70
|
400
|
700*700
|
0.4-0.8
|
148
|
|
