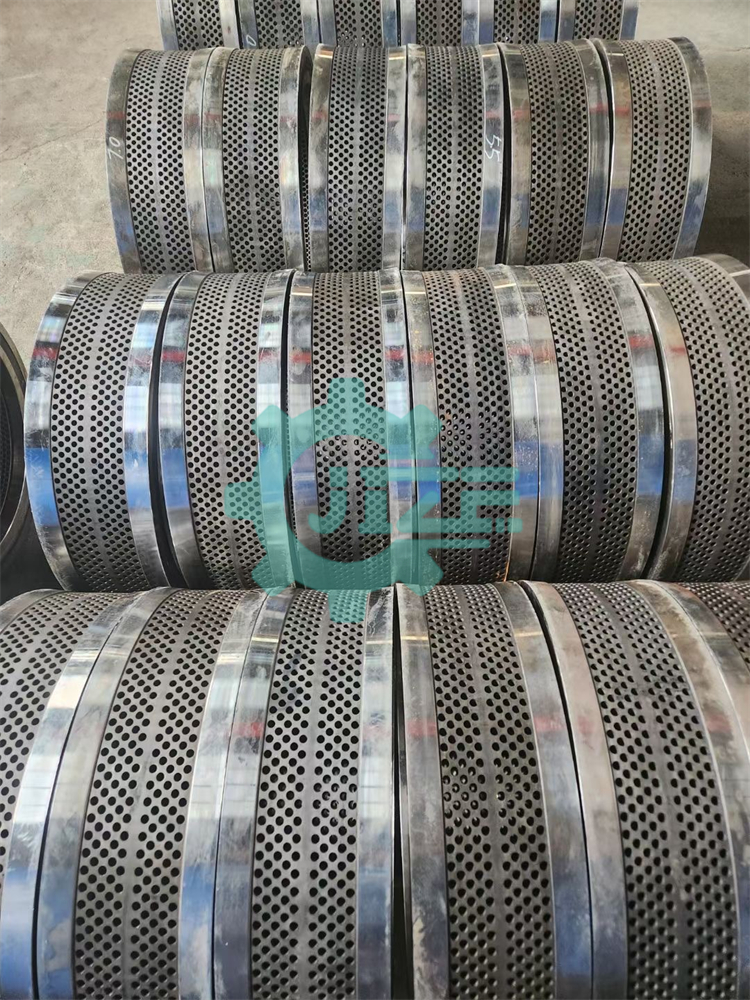

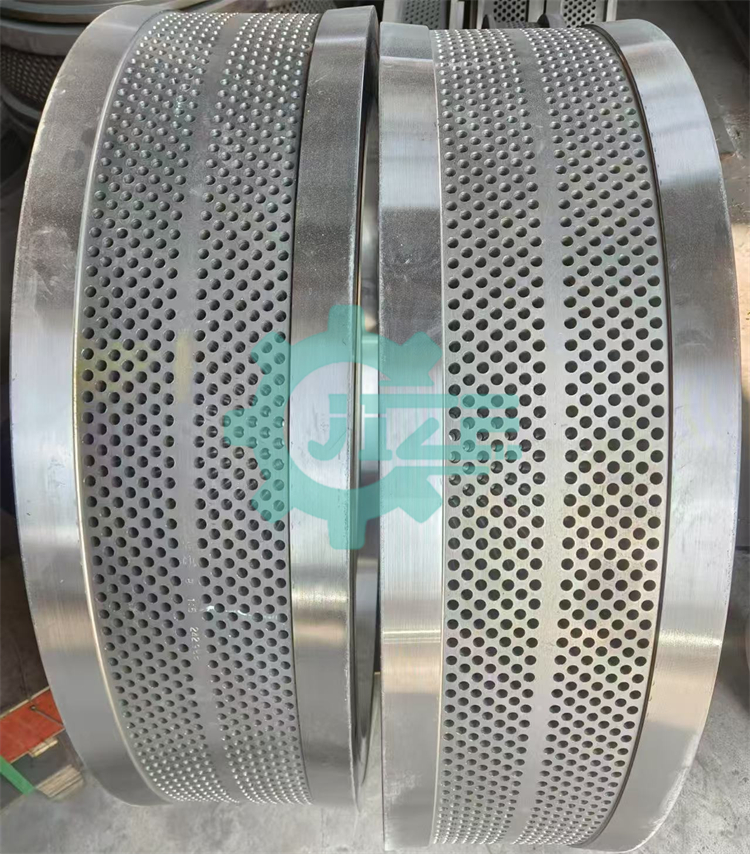

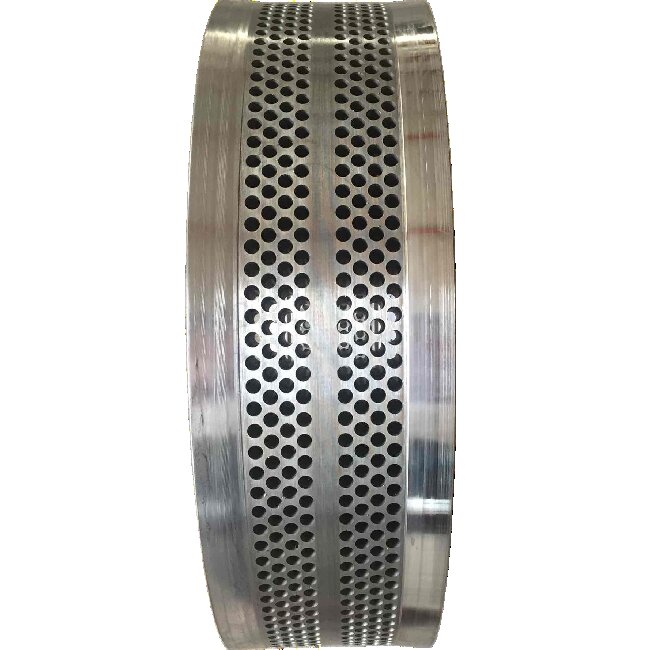

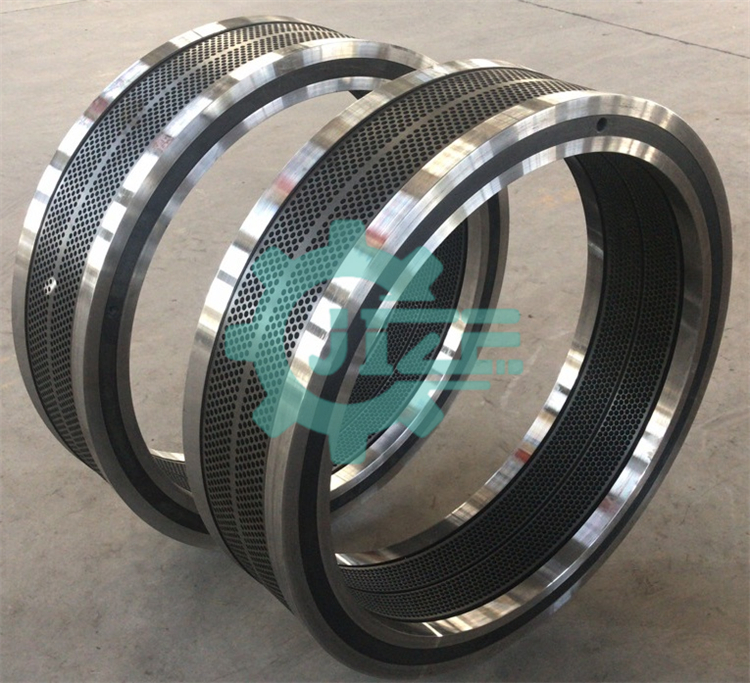

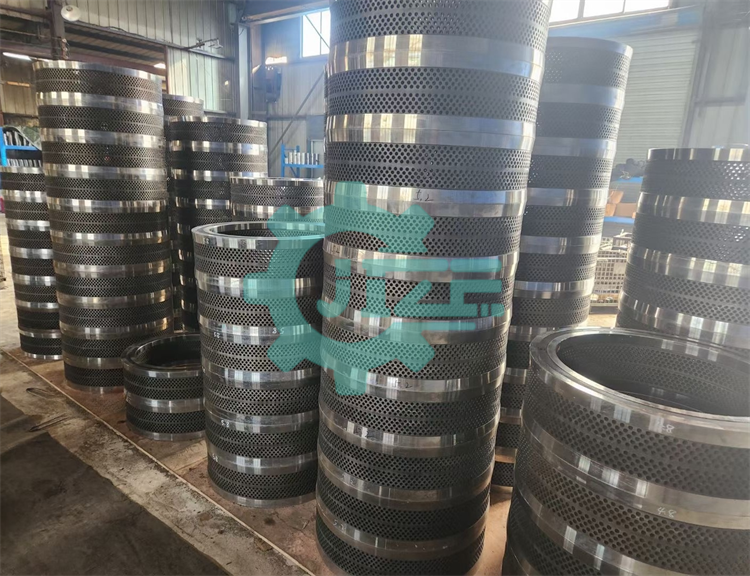

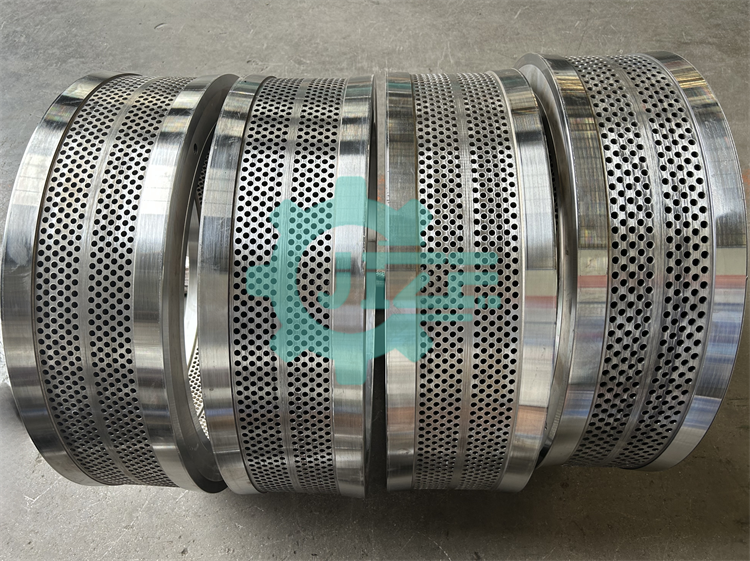

XGJ(YuLong) Wood Pellet Die
Name: XGJ560 ring die, XGJ850 pellet die, Yulong 560 pellet machine ring die, Yulong 850 wood pellet die, XGJ 560 wood pellet mill die, XGJ 850 wood pellet machine die, Yulong wood pellet machine matrix, XGJ wood pellet machine die, XGJ wood pellet ring die.
Raw material:
Ring die: alloy steel 20CrMnTi, stainless steel X46Cr13.
Roller: alloy steel 40Cr or 20CrMnTi (Chinese standard), 20MnCr5 (Germany standard), 100Cr6 (bearing steel).
Hole diamter: φ1mm-φ14mm.Compression ratio: 1:4-1:7.
Processing machines:
20 sets auto gun-drilling machines(3 sets deepth holes drilling machines, can drill max 140mm thickness holes, can drill min 1.0mm diameter holes).6 sets auto counter-sinking machines.6 sets auto CNC lathing machines.2 sets vacuum heat treatment machines.
Delivery time: mostly 10-35 days.
Packing way: wooden box.
Accept customized!!!
XGJ560 YULONG 560 wood pellet machine die:
XGJ850 YULONG 850 wood pellet making die:

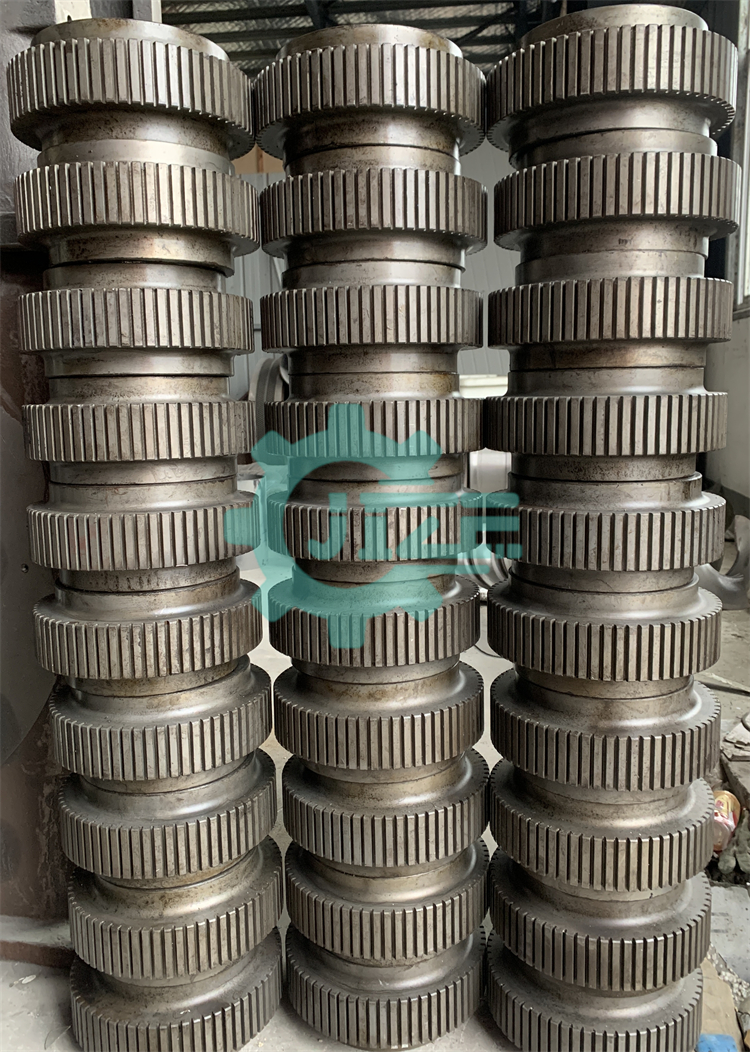

XGJ YULONG wood pellet machine roller:
|
