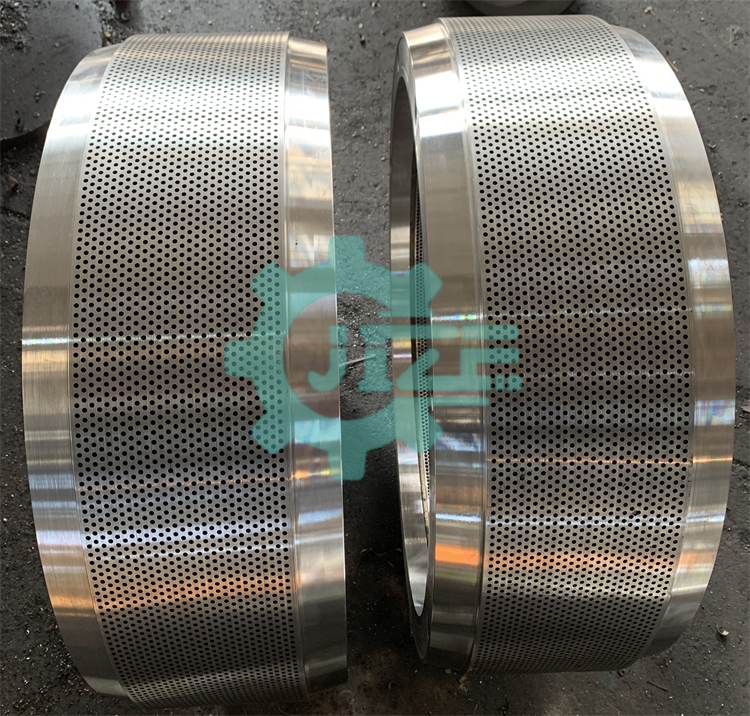

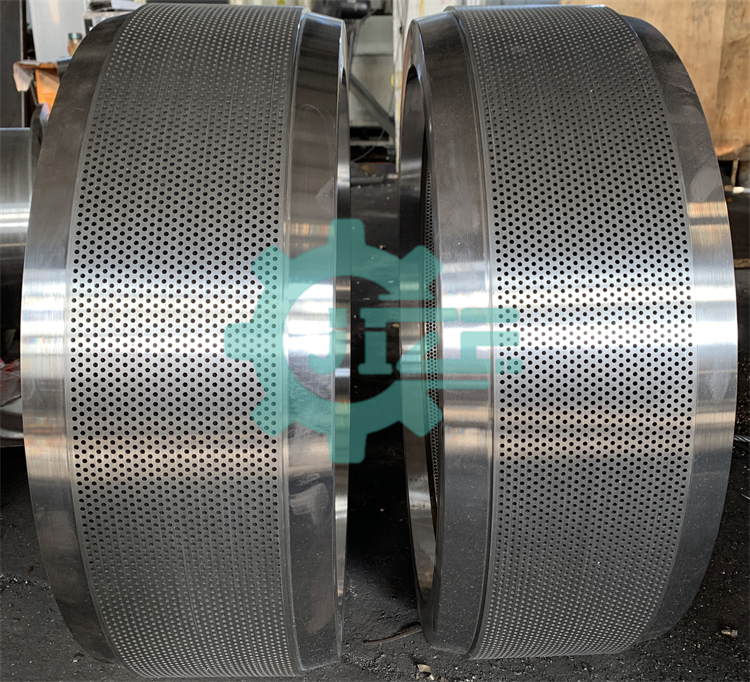

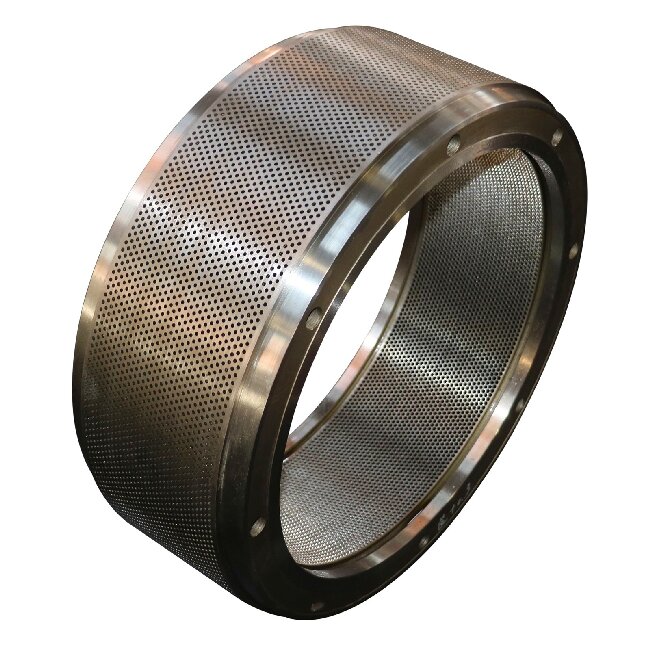

PTN Feed Pelletizer Die
Name: PTN580 ring die, PTN580-C pellet die, PTN 580 pellet machine ring die, PTN 580-C feed pellet die, PTN pellet mill die, PTN pellet mill matrix, PTN pellet machine matrix, PTN pellet machine roller, PTN pellet roller.
Model: PTN580, PTN580-C PTN900...
Raw material:
Ring die: alloy steel 20CrMnTi, stainless steel X46Cr13.
Roller: alloy steel 40Cr or 20CrMnTi (Chinese standard), 20MnCr5 (Germany standard), 100Cr6 (bearing steel).
Hole diamter: φ1mm-φ14mm.
Compression ratio: 1:2-1:28.
Processing machines:
20 sets auto gun-drilling machines(3 sets deepth holes drilling machines, can drill max 140mm thickness holes, can drill min 1.0mm diameter holes).
6 sets auto counter-sinking machines.
6 sets auto CNC lathing machines.
2 sets vacuum heat treatment machines.
Delivery time: mostly 10-35 days.
Packing way: wooden box.
Accept customized!!!

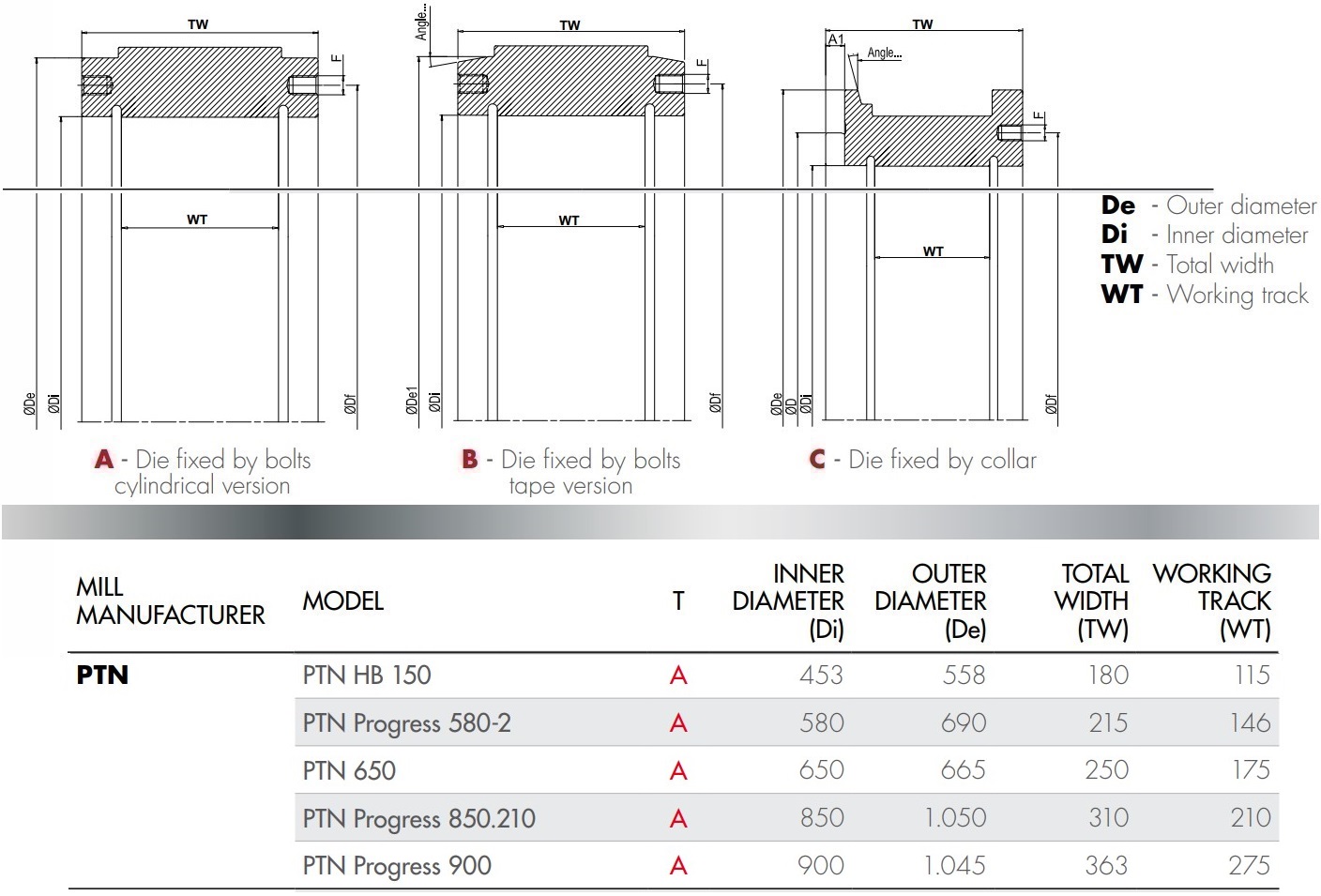

Model:

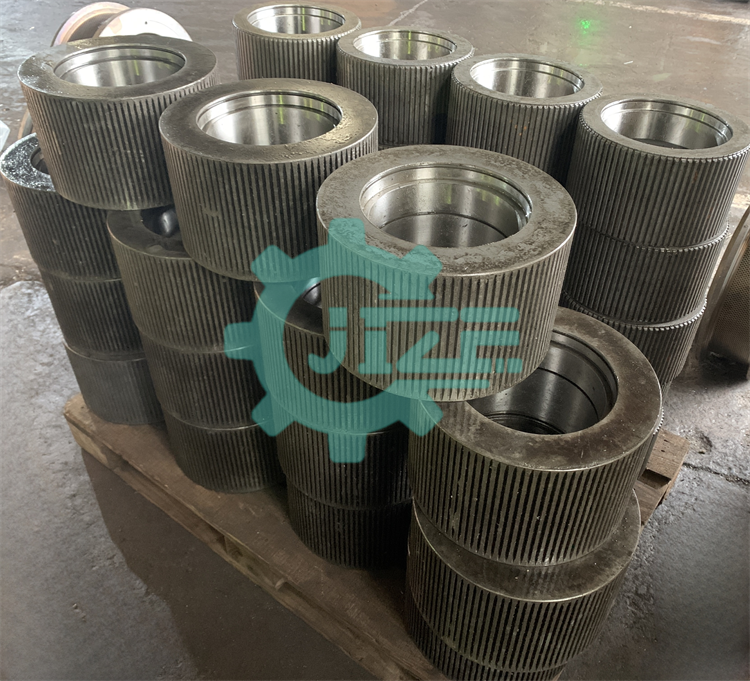

PTN feed pellet roller:
|
