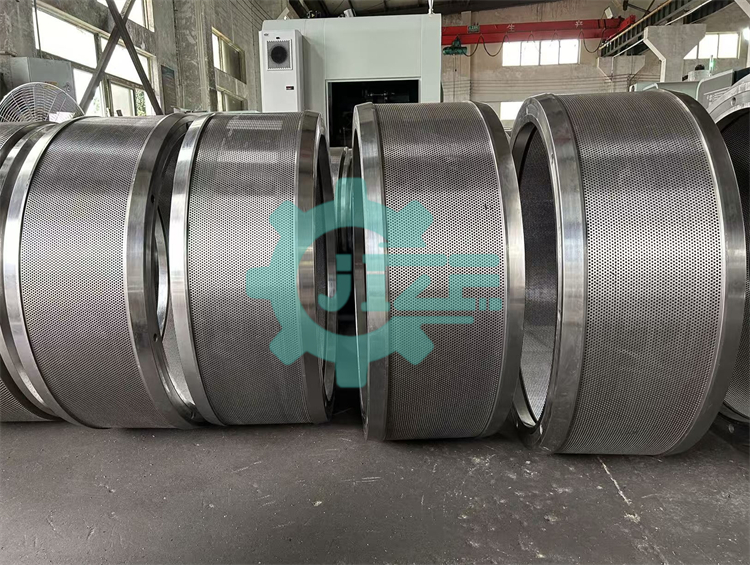

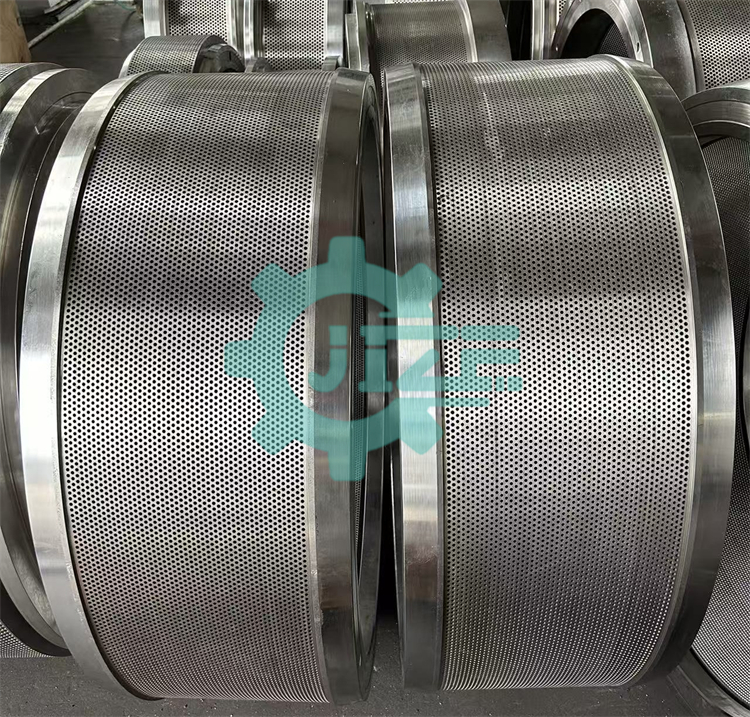

Van Aarsen Feed Pellet Die
Name: Van Aarsen C600 ring die, Van Aarsen 750 pellet die, Van Aarsen 900 pellet machine ring die, Van Aarsen C600 feed pellet die, Van Aarsen750 feed pellet mill die, Van Aarsen900 feed pellet machine die, Van Aarsen pellet machine matrix, Van Aarsen pellet mill matrix, Van Aarsen pellet machine die, Van Aarsen pellet machine roller.
Model: Van Arson C600, Van Arsen 750, Van Arsen 900.
Raw material:
Ring die: alloy steel 20CrMnTi, stainless steel X46Cr13.
Roller: alloy steel 40Cr or 20CrMnTi (Chinese standard), 20MnCr5 (Germany standard), 100Cr6 (bearing steel).
Hole diamter: φ1mm-φ14mm.
Compression ratio: 1:2-1:28.
Processing machines:
20 sets auto gun-drilling machines(3 sets deepth holes drilling machines, can drill max 140mm thickness holes, can drill min 1.0mm diameter holes).
6 sets auto counter-sinking machines.
6 sets auto CNC lathing machines.
2 sets vacuum heat treatment machines.
Delivery time: mostly 10-35 days.
Packing way: wooden box.
Accept customized!!!

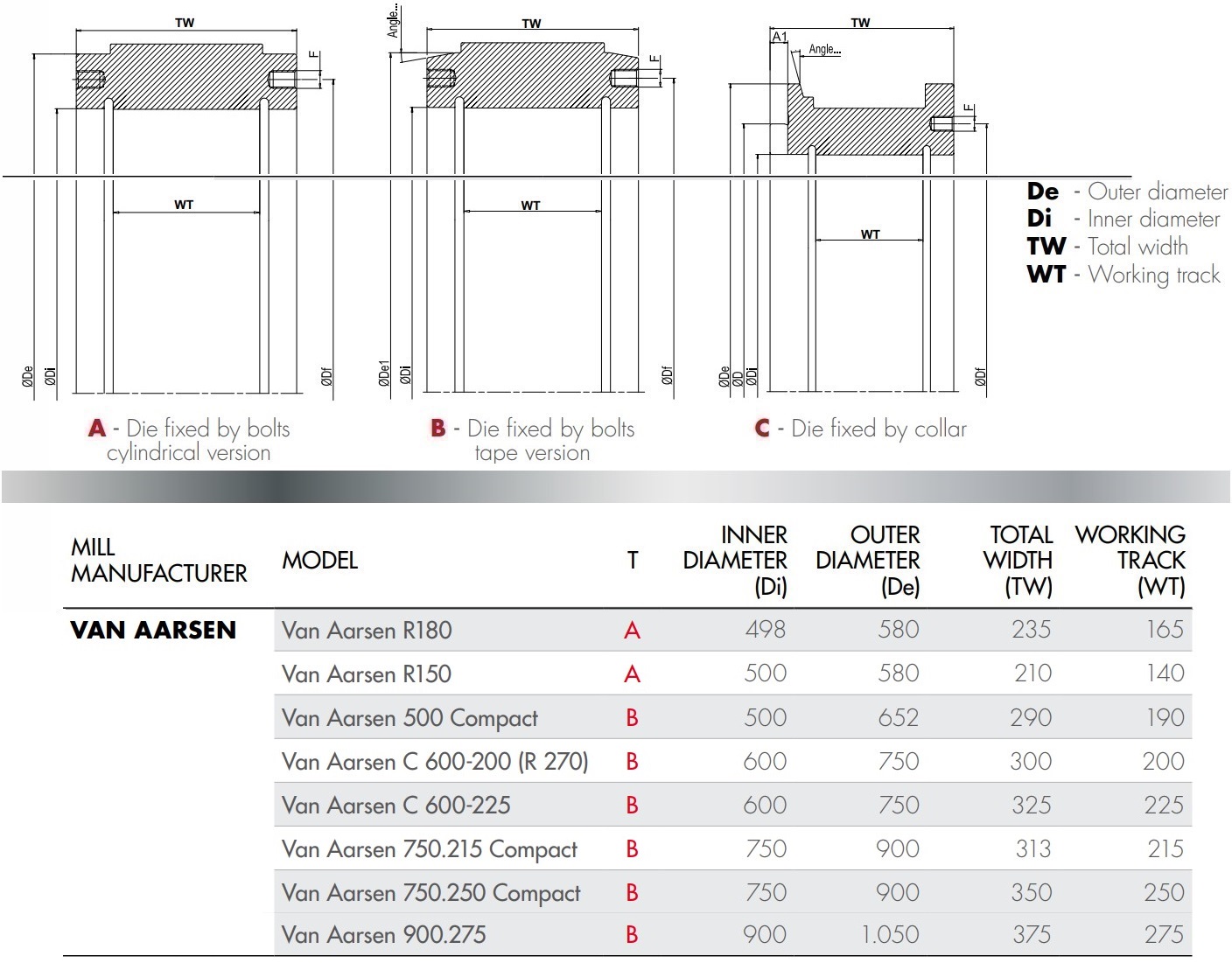

Model:

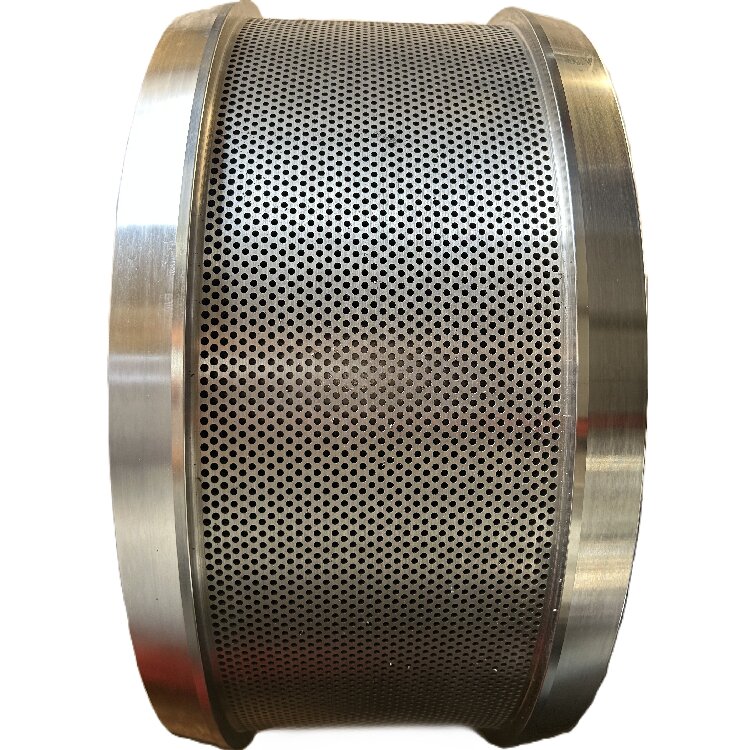

Van Aarsen C600-225 pellet machine ring die:
|
