HKJ Animal Feed Pellet Die
Name: HKJ25 ring die, HKJ32 pellet die, HKJ35 pellet machine ring die, HKJ40 feed pellet die, HKJ45 feed pellet mill die, HKJ250 feed pellet machine die, HKJ32B pellet machine matrix, HKJ35B pellet mill matrix, HKJ40B pellet machine die, HKJ45B pellet mill die, HKJ ring die and roller.
Model: HKJ25 /HKJ250, HKJ32 /HKJ320, HKJ35 /HKJ350, HKJ40 /HKJ400, HKJ45, HKJ508...
Raw material:
Ring die: alloy steel 20CrMnTi, stainless steel X46Cr13.
Roller: alloy steel 40Cr or 20CrMnTi (Chinese standard), 20MnCr5 (Germany standard), 100Cr6 (bearing steel).
Hole diamter: φ1mm-φ14mm.
Compression ratio: 1:2-1:28.
Processing machines:
20 sets auto gun-drilling machines(3 sets deepth holes drilling machines, can drill max 140mm thickness holes, can drill min 1.0mm diameter holes).
6 sets auto counter-sinking machines.
6 sets auto CNC lathing machines.
2 sets vacuum heat treatment machines.
Delivery time: mostly 10-35 days.
Packing way: wooden box.
Accept customized!!!

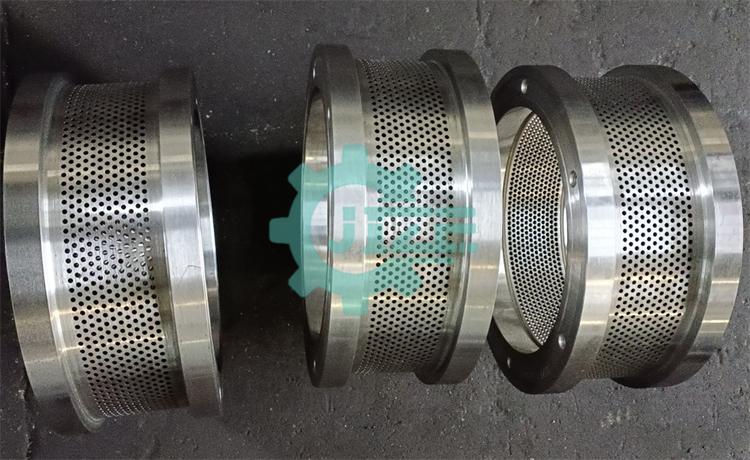

HKJ250 feed machine matrix:

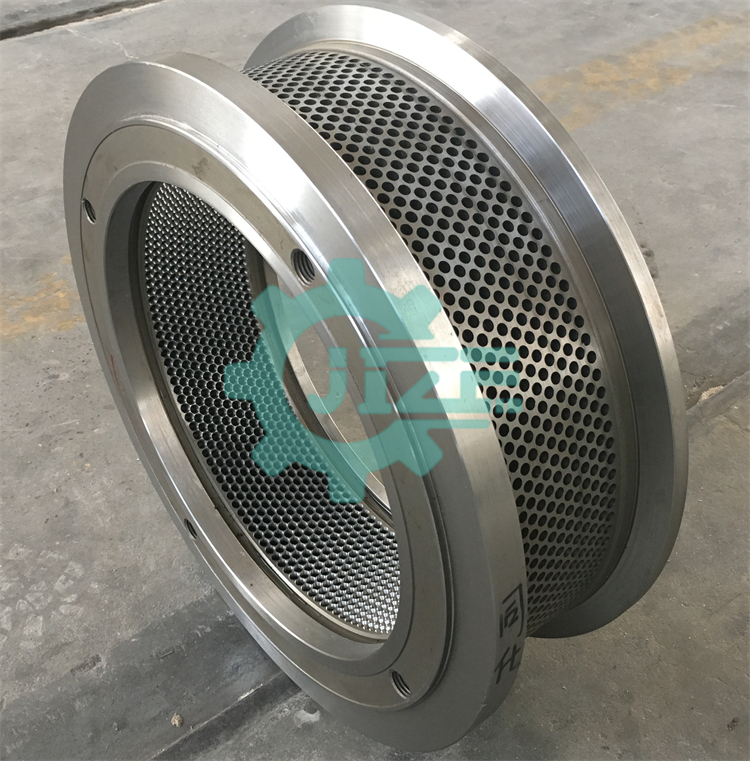

HKJ350 pellet matrix:

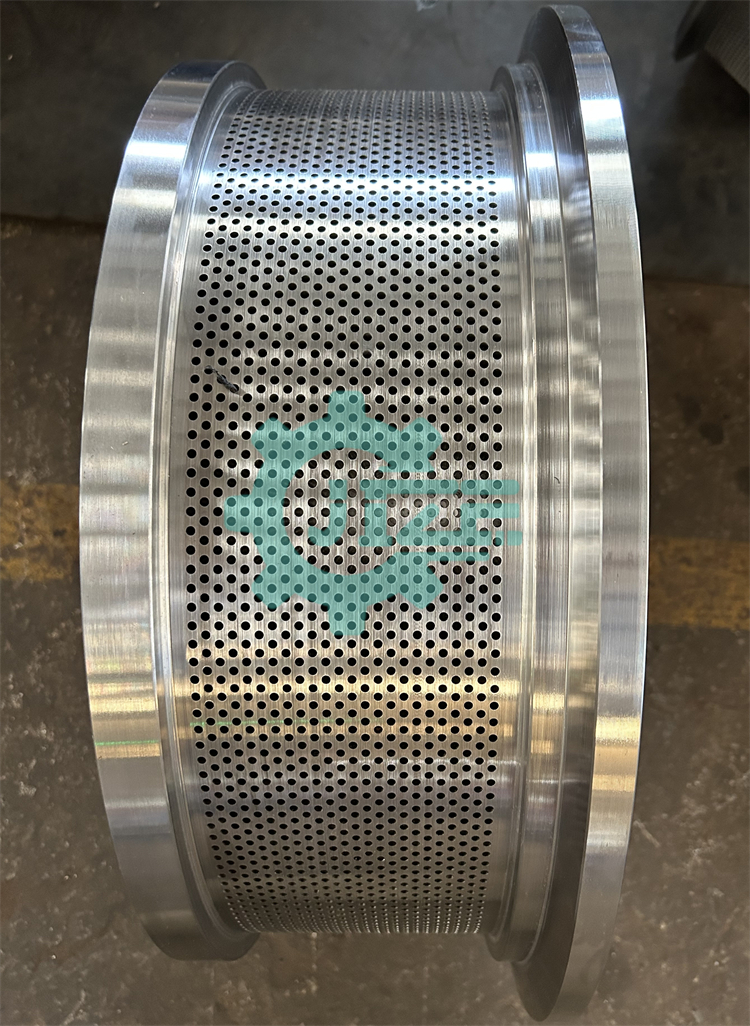

HKJ400 poultry feed pellet producing ring die:

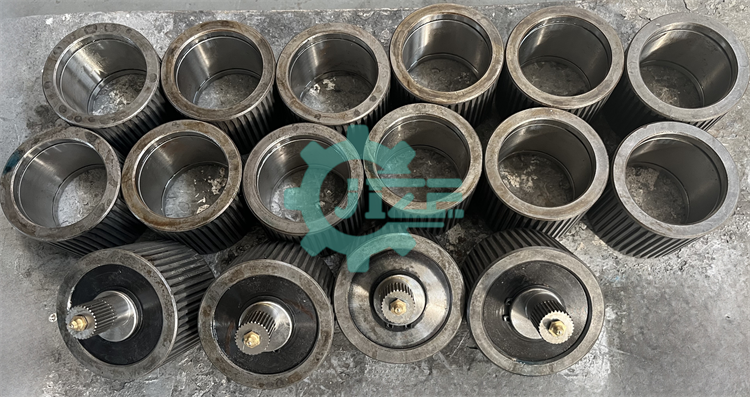

HKJ chicken cattle sheep cow feed pellet machine roller:
|
